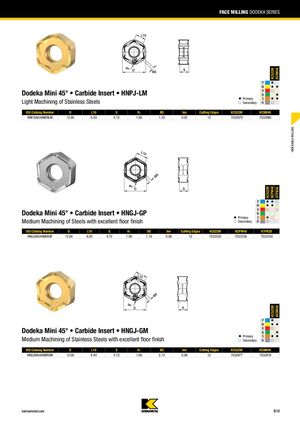

Торцовое фрезерование серия Dodeka
Dodeka Mini 45° • Твердосплавная пластина • HNPJ-LM
Легкая обработка нержавеющих сталей
| Каталожный номер ISO | D | L10 | S | RH | BS | hm | Режущие кромки | KC522M | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|
| HNPJ0604ANERLM | 12.00 | 6.93 | 4.72 | 1.00 | 1.33 | 0.05 | 12 | 7032979 | 7032980 |
Dodeka Mini 45° • Твердосплавная пластина • HNGJ-GP
Средняя обработка сталей с отличной чистотой поверхности
| Каталожный номер ISO | D | L10 | S | RH | BS | hm | Режущие кромки | KC522M | KCPM40 | KTPK20 |
|---|---|---|---|---|---|---|---|---|---|---|
| HNGJ0604ANERGP | 12.00 | 6.93 | 4.72 | 1.00 | 1.10 | 0.06 | 12 | 7033335 | 7033336 | 7033334 |
Dodeka Mini 45° • Твердосплавная пластина • HNGJ-GM
Средняя обработка нержавеющих сталей с отличной чистотой поверхности
| Каталожный номер ISO | D | L10 | S | RH | BS | hm | Режущие кромки | KC522M | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|
| HNGJ0604ANERGM | 12.00 | 6.93 | 4.72 | 1.00 | 2.13 | 0.06 | 12 | 7032977 | 7032978 |
