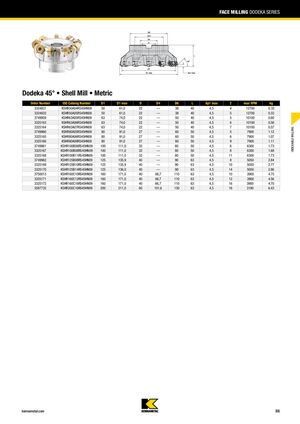

FACE MILLING DODEKA SERIES Dodeka 45° • Shell Mill • Metric Order Number ISO Catalog Number D1 D1 max D D4 D6 L Ap1 max Z max RPM kg 3324831 KSHR50A04RS45HN09 50 61,0 22 — 38 40 4,5 4 12700 0.32 3324832 KSHR50A05RS45HN09 50 61,0 22 — 38 40 4,5 5 12700 0.33 3749959 KSHR63A05RS45HN09 63 74,0 22 — 50 40 4,5 5 10100 0.60 3325163 KSHR63A06RS45HN09 63 74,0 22 — 50 40 4,5 6 10100 0.56 3325164 KSHR63A07RS45HN09 63 74,0 22 — 50 40 4,5 7 10100 0.57 INDEXABLE MILLING 3749960 KSHR80A05RS45HN09 80 91,0 27 — 60 50 4,5 5 7900 1.12 3325165 KSHR80A06RS45HN09 80 91,0 27 — 60 50 4,5 6 7900 1.07 3325166 KSHR80A09RS45HN09 80 91,0 27 — 60 50 4,5 9 7900 1.11 3749961 KSHR100B06RS45HN09 100 111,0 32 — 80 50 4,5 6 6300 1.73 3325167 KSHR100B08RS45HN09 100 111,0 32 — 80 50 4,5 8 6300 1.68 3325168 KSHR100B11RS45HN09 100 111,0 32 — 80 50 4,5 11 6300 1.73 3749962 KSHR125B08RS45HN09 125 135,9 40 — 90 63 4,5 8 5050 2.84 3325169 KSHR125B10RS45HN09 125 135,9 40 — 90 63 4,5 10 5050 2.77 3325170 KSHR125B14RS45HN09 125 136,0 40 — 90 63 4,5 14 5050 2.86 3750013 KSHR160C10RS45HN09 160 171,0 40 66,7 110 63 4,5 10 3900 4.75 3325171 KSHR160C12RS45HN09 160 171,0 40 66,7 110 63 4,5 12 3900 4.56 3325172 KSHR160C16RS45HN09 160 171,0 40 66,7 110 63 4,5 16 3900 4.70 3587732 KSHR200C16RS45HN09 200 211,0 60 101,6 130 63 4,5 16 3180 6.43 kennametal.com B8
