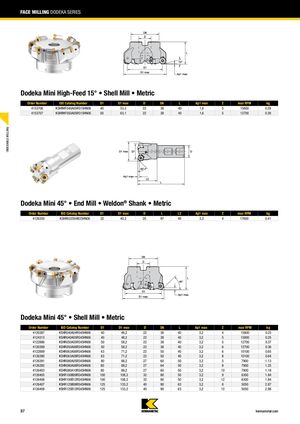

Торцевое фрезерование. Серия DODEKA®
Dodeka Mini высокопроизводительная 15° • Фреза-головка • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D1 макс | D | D6 | L | Ap1 макс | Z | Макс об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 4153706 | KSHRHF040A05RS15HN06 | 40 | 53,2 | 22 | 38 | 40 | 1,6 | 5 | 15800 | 0.29 |
| 4153707 | KSHRHF050A05RS15HN06 | 50 | 63,1 | 22 | 38 | 40 | 1,6 | 5 | 12700 | 0.39 |
Dodeka Mini 45° • Фреза конца с хвостовиком Weldon® • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D1 макс | D | L | L2 | Ap1 макс | Z | Макс об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 4126350 | KSHR032D04B25HN06 | 32 | 40,2 | 25 | 97 | 40 | 3,2 | 4 | 17600 | 0.41 |
Dodeka Mini 45° • Фреза-головка • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D1 макс | D | D6 | L | Ap1 макс | Z | Макс об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 4126387 | KSHR040A04RS45HN06 | 40 | 48,2 | 22 | 38 | 40 | 3,2 | 4 | 15800 | 0.25 |
| 4124313 | KSHR040A05RS45HN06 | 40 | 48,2 | 22 | 38 | 40 | 3,2 | 5 | 15800 | 0.25 |
| 4122886 | KSHR050A05RS45HN06 | 50 | 58,2 | 22 | 38 | 40 | 3,2 | 5 | 12700 | 0.37 |
| 4126389 | KSHR050A06RS45HN06 | 50 | 58,2 | 22 | 38 | 40 | 3,2 | 6 | 12700 | 0.36 |
| 4122889 | KSHR063A06RS45HN06 | 63 | 71,2 | 22 | 50 | 40 | 3,2 | 6 | 10100 | 0.65 |
| 4126390 | KSHR063A08RS45HN06 | 63 | 71,2 | 22 | 50 | 40 | 3,2 | 8 | 10100 | 0.64 |
| 4126391 | KSHR080A05RS45HN06 | 80 | 88,2 | 27 | 60 | 50 | 3,2 | 5 | 7900 | 1.13 |
| 4126392 | KSHR080A08RS45HN06 | 80 | 88,2 | 27 | 64 | 50 | 3,2 | 8 | 7900 | 1.25 |
| 4126403 | KSHR080A10RS45HN06 | 80 | 88,2 | 27 | 60 | 50 | 3,2 | 10 | 7900 | 1.19 |
| 4126405 | KSHR100B09RS45HN06 | 100 | 108,2 | 32 | 80 | 50 | 3,2 | 9 | 6300 | 1.84 |
| 4126406 | KSHR100B12RS45HN06 | 100 | 108,2 | 32 | 80 | 50 | 3,2 | 12 | 6300 | 1.84 |
| 4126407 | KSHR125B08RS45HN06 | 125 | 133,2 | 40 | 90 | 63 | 3,2 | 8 | 5050 | 2.87 |
| 4126408 | KSHR125B12RS45HN06 | 125 | 133,2 | 40 | 90 | 63 | 3,2 | 12 | 5050 | 2.98 |
