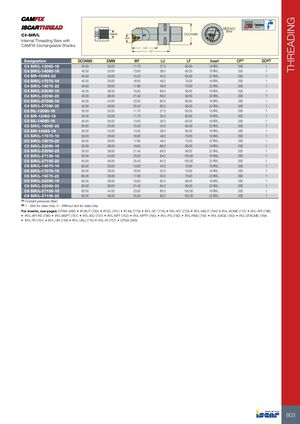

Токарные резцы для нарезания внутренних резьб со сменными державками CAMFIX
| Обозначение | DCONMS | DMIN | WF | LU | LF | Резец | CP(1) | DCP(2) |
|---|---|---|---|---|---|---|---|---|
| C4 SIR/L-12060-16 | 40.00 | 20.00 | 11.70 | 37.0 | 60.00 | 16 IR/L.. | 200 | 1 |
| C4 SIR/L-14060-16 | 40.00 | 25.00 | 13.50 | 38.0 | 60.00 | 16 IR/L.. | 200 | 1 |
| C4 SIR-15065-22 | 40.00 | 25.00 | 15.40 | 42.0 | 65.00 | 22 IR/L.. | 200 | 1 |
| C4 SIR/L-17070-16 | 40.00 | 29.00 | 16.00 | 48.0 | 70.00 | 16 IR/L.. | 200 | 1 |
| C4 SIR/L-19070-22 | 40.00 | 29.00 | 17.90 | 48.0 | 70.00 | 22 IR/L.. | 200 | 1 |
| C4 SIR/L-22090-16 | 40.00 | 36.00 | 19.50 | 69.0 | 90.00 | 16 IR/L.. | 200 | 1 |
| C4 SIR/L-22090-22 | 40.00 | 38.00 | 21.40 | 69.0 | 90.00 | 22 IR/L.. | 200 | 1 |
| C4 SIR/L-27080-16 | 40.00 | 44.00 | 23.50 | 60.0 | 80.00 | 16 IR/L.. | 200 | 1 |
| C4 SIR/L-27080-22 | 40.00 | 46.00 | 25.40 | 60.0 | 80.00 | 22 IR/L.. | 200 | 1 |
| C5 SIL-12060-16 | 50.00 | 20.00 | 11.70 | 37.0 | 60.00 | 16 IR/L.. | 200 | 1 |
| C5 SIR-12060-16 | 50.00 | 20.00 | 11.70 | 35.0 | 60.00 | 16 IR/L.. | 200 | 1 |
| C5 SIL-14060-16 | 50.00 | 25.00 | 13.50 | 36.0 | 60.00 | 16 IR/L.. | 200 | 1 |
| C5 SIR/L-15065-22 | 50.00 | 25.00 | 15.40 | 42.0 | 65.00 | 22 IR/L.. | 200 | 1 |
| C5 SIR-14060-16 | 50.00 | 25.00 | 13.50 | 38.0 | 60.00 | 16 IR/L.. | 200 | 1 |
| C5 SIR/L-17070-16 | 50.00 | 29.00 | 16.00 | 48.0 | 70.00 | 16 IR/L.. | 200 | 1 |
| C5 SIR/L-19070-22 | 50.00 | 29.00 | 17.90 | 48.0 | 70.00 | 22 IR/L.. | 200 | 1 |
| C5 SIR/L-22090-16 | 50.00 | 36.00 | 19.50 | 68.0 | 90.00 | 16 IR/L.. | 200 | 1 |
| C5 SIR/L-22090-22 | 50.00 | 38.00 | 21.40 | 68.0 | 90.00 | 22 IR/L.. | 200 | 1 |
| C5 SIR/L-27105-16 | 50.00 | 44.00 | 23.50 | 84.0 | 105.00 | 16 IR/L.. | 200 | 1 |
| C5 SIR/L-27105-22 | 50.00 | 46.00 | 25.40 | 84.0 | 105.00 | 22 IR/L.. | 200 | 1 |
| C6 SIR/L-14070-16 | 63.00 | 25.00 | 13.50 | 45.0 | 70.00 | 16 IR/L.. | 200 | 1 |
| C6 SIR/L-17075-16 | 63.00 | 29.00 | 16.00 | 50.0 | 75.00 | 16 IR/L.. | 200 | 1 |
| C6 SIR/L-19075-22 | 63.00 | 29.00 | 17.90 | 50.0 | 75.00 | 22 IR/L.. | 200 | 1 |
| C6 SIR/L-22090-16 | 63.00 | 36.00 | 19.50 | 65.0 | 90.00 | 16 IR/L.. | 200 | 1 |
| C6 SIR/L-22090-22 | 63.00 | 38.00 | 21.40 | 64.0 | 90.00 | 22 IR/L.. | 200 | 1 |
| C6 SIR/L-27105-16 | 63.00 | 44.00 | 23.50 | 80.0 | 105.00 | 16 IR/L.. | 200 | 1 |
| C6 SIR/L-27105-22 | 63.00 | 46.00 | 25.40 | 80.0 | 105.00 | 22 IR/L.. | 200 | 1 |
(1) Давление охлаждающей жидкости (бар)
(2) 1 — паз для микросхемы данных, 0 — без паза для микросхемы данных
Резцы см. на страницах: GTMA (366) • IR-BUT (790) • IR-EL (791) • IR-MJ (778) • IR/L-55° (716) • IR/L-60° (723) • IR/L-ABUT (784) • IR/L-ACME (772) • IR/L-API (788) • IR/L-API RD (786) • IR/L-BSPT (767) • IR/L-ISO (737) • IR/L-NPT (762) • IR/L-NPTF (765) • IR/L-PG (782) • IR/L-RND (792) • IR/L-SAGE (783) • IR/L-STACME (769) • IR/L-TR (781) • IR/L-UN (749) • IR/L-UNJ (776) • IR/L-W (757) • GTGA (365)
