Нарезание резьбы

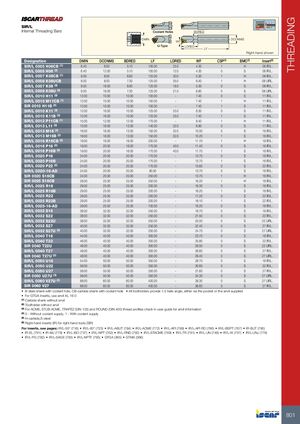

SIR/L — Расточные оправки для внутреннего нарезания
| Обозначение | DMIN | DCONMS | BDRED | LF | LDRED | WF | CSP(4) | BMC(5) | Пластина(6) |
|---|---|---|---|---|---|---|---|---|---|
| SIR/L 0005 H06CB (1) | 6.40 | 6.00 | 5.10 | 100.00 | 25.0 | 4.30 | 1 | H | 06 IR/L.. |
| SIR/L 0005 H06 (2) | 6.40 | 12.00 | 5.10 | 100.00 | 12.0 | 4.30 | 0 | S | 06 IR/L.. |
| SIR/L 0007 K08CB (1) | 9.00 | 8.00 | 6.60 | 125.00 | 30.0 | 5.30 | 1 | H | 08 IR/L.. |
| SIR/L 0008 K08UCB | 9.00 | 8.00 | 7.30 | 125.00 | 35.0 | 6.40 | 1 | H | 08 UIRL.. |
| SIR/L 0007 K08 (2) | 9.00 | 16.00 | 6.60 | 125.00 | 18.0 | 5.30 | 0 | S | 08 IR/L.. |
| SIR/L 0008 K08U (2) | 9.00 | 16.00 | 7.30 | 125.00 | 21.0 | 6.60 | 0 | S | 08 UIRL.. |
| SIR/L 0010 H11 (2) | 12.00 | 10.00 | 10.00 | 100.00 | — | 7.40 | 0 | S | 11 IR/L.. |
| SIR/L 0010 M11CB (1) | 12.00 | 10.00 | 10.00 | 150.00 | — | 7.40 | 1 | H | 11 IR/L.. |
| SIR 0010 H11B (2) | 12.00 | 10.00 | 10.00 | 100.00 | — | 7.40 | 1 | S | 11 IR/L.. |
| SIR/L 0010 K11 (2) | 12.00 | 16.00 | 10.00 | 125.00 | 25.0 | 6.50 | 0 | S | 11 IR/L.. |
| SIR/L 0010 K11B (2) | 12.00 | 16.00 | 10.00 | 125.00 | 25.0 | 7.40 | 1 | S | 11 IR/L.. |
| SIR/L 0012 P11CB (1) | 15.00 | 12.00 | 12.00 | 170.00 | — | 8.40 | 1 | H | 11 IR/L.. |
| SIR/L 0013 L11 (2) | 15.00 | 16.00 | 13.00 | 140.00 | 32.0 | 8.90 | 0 | S | 11 IR/L.. |
| SIR/L 0013 M16 (2) | 16.00 | 16.00 | 13.00 | 150.00 | 32.0 | 10.00 | 0 | S | 16 IR/L.. |
| SIR/L 0013 M16B (2) | 16.00 | 16.00 | 13.00 | 150.00 | 32.0 | 10.20 | 1 | S | 16 IR/L.. |
| SIR/L 0016 R16CB (2) | 19.00 | 16.00 | 16.00 | 200.00 | — | 11.70 | 1 | H | 16 IR/L.. |
| SIR/L 0016 P16 (2) | 19.00 | 20.00 | 16.00 | 170.00 | 40.0 | 11.40 | 0 | S | 16 IR/L.. |
| SIR/L 0016 P16B (2) | 19.00 | 20.00 | 16.00 | 170.00 | 40.0 | 11.70 | 1 | S | 16 IR/L.. |
| SIR/L 0020 P16 | 24.00 | 20.00 | 20.00 | 170.00 | — | 13.70 | 0 | S | 16 IR/L.. |
| SIR/L 0020 P16B | 24.00 | 20.00 | 20.00 | 170.00 | — | 13.70 | 1 | S | 16 IR/L.. |
| SIR/L 0020 P22 (2) | 24.00 | 20.00 | 20.00 | 170.00 | — | 15.60 | 0 | S | 22 IR/L.. |
| SIR/L 0020-16-AD | 24.00 | 20.00 | 20.00 | 80.00 | — | 13.70 | 0 | S | 16 IR/L.. |
| SIR 0020 S16CB | 24.00 | 20.00 | 20.00 | 250.00 | — | 13.70 | 1 | H | 16 IR/L.. |
| SIR 0025 S16CB | 28.00 | 25.00 | 25.00 | 250.00 | — | 16.20 | 1 | H | 16 IR/L.. |
| SIR/L 0025 R16 | 29.00 | 25.00 | 25.00 | 200.00 | — | 16.30 | 0 | S | 16 IR/L.. |
| SIR/L 0025 R16B | 29.00 | 25.00 | 25.00 | 200.00 | — | 16.20 | 1 | S | 16 IR/L.. |
| SIR/L 0025 R22 | 29.00 | 25.00 | 25.00 | 200.00 | — | 17.20 | 0 | S | 22 IR/L.. |
| SIR/L 0025 R22B | 29.00 | 25.00 | 25.00 | 200.00 | — | 18.10 | 1 | S | 22 IR/L.. |
| SIR/L 0025-16-AD | 29.00 | 25.00 | 25.00 | 100.00 | — | 16.20 | 0 | S | 16 IR/L.. |
| SIR/L 0032 S16 | 36.00 | 32.00 | 32.00 | 250.00 | — | 19.70 | 0 | S | 16 IR/L.. |
| SIR/L 0032 S22 | 38.00 | 32.00 | 32.00 | 250.00 | — | 21.50 | 0 | S | 22 IR/L.. |
| SIR/L 0032 S22U | 38.00 | 32.00 | 32.00 | 250.00 | — | 25.50 | 0 | S | 22 UIRL.. |
| SIR/L 0032 S27 | 40.00 | 32.00 | 32.00 | 250.00 | — | 22.40 | 0 | S | 27 IR/L.. |
| SIR/L 0032 S27U (3) | 40.00 | 32.00 | 32.00 | 250.00 | — | 24.70 | 0 | S | 27 UIRL.. |
| SIR/L 0040 T16 | 44.00 | 40.00 | 40.00 | 300.00 | — | 23.70 | 0 | S | 16 IR/L.. |
| SIR/L 0040 T22 | 46.00 | 40.00 | 40.00 | 300.00 | — | 25.80 | 0 | S | 22 IR/L.. |
| SIR 0040 T22U | 46.00 | 40.00 | 40.00 | 300.00 | — | 29.50 | 0 | S | 22 UIRL.. |
| SIR/L 0040 T27 | 48.00 | 40.00 | 40.00 | 300.00 | — | 26.60 | 0 | S | 27 IR/L.. |
| SIR 0040 T27U (3) | 48.00 | 40.00 | 40.00 | 300.00 | — | 29.40 | 0 | S | 27 UIRL.. |
| SIR/L 0050 U16 | 54.00 | 50.00 | 50.00 | 350.00 | — | 28.70 | 0 | S | 16 IR/L.. |
| SIR/L 0050 U22 | 56.00 | 50.00 | 50.00 | 350.00 | — | 30.60 | 0 | S | 22 IR/L.. |
| SIR/L 0050 U27 | 58.00 | 50.00 | 50.00 | 350.00 | — | 31.60 | 0 | S | 27 IR/L.. |
| SIR 0050 U27U (3) | 58.00 | 50.00 | 50.00 | 350.00 | — | 34.30 | 0 | S | 27 UIRL.. |
| SIR/L 0060 V27U (3) | 68.00 | 60.00 | 60.00 | 400.00 | — | 39.30 | 0 | S | 27 UIRL.. |
| SIR 0060 V27 | 68.00 | 60.00 | 60.00 | 400.00 | — | 36.60 | 0 | S | 27 IR/L.. |
- B — стальной хвостовик с охлаждающим отверстием, CB — твердосплавный хвостовик с охлаждающим отверстием
- Все державки обеспечивают угол спирали 1,5°, либо через карман, либо через поставляемую наковальню
- Для пластин GTGA используйте наковальню AL 16-0
Примечания:
- (1) Твердосплавный хвостовик без наковальни
- (2) Державка без наковальни
- (3) Для профилей резьбы ACME, STUB ACME, TRAPEZ (DIN 103) и ROUND (DIN 405) см. информацию о наковальне в руководстве пользователя
- (4) 0 — Без подачи СОЖ, 1 — С подачей СОЖ
- (5) H — твердосплав, S — сталь
- (6) Правые пластины (IR) для правых инструментов (SIR)
Информацию о пластинах см. на страницах: IR/L-55° (716) • IR/L-60° (723) • IR/L-ABUT (784) • IR/L-ACME (772) • IR/L-API (788) • IR/L-API RD (786) • IR/L-BSPT (767) • IR-BUT (790) • IR-EL (791) • IR-MJ (778) • IR/L-ISO (737) • IR/L-NPT (762) • IR/L-RND (792) • IR/L-STACME (769) • IR/L-TR (781) • IR/L-UN (749) • IR/L-W (757) • IR/L-UNJ (776) • IR/L-PG (782) • IR/L-SAGE (783) • IR/L-NPTF (765) • GTGA (365) • GTMA (366)
