Нарезание резьбы

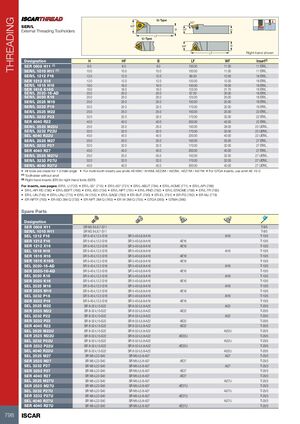

SER/L — Державки для внешнего нарезания резьбы
| Обозначение | H | HF | B | LF | WF | Пластина(2) |
|---|---|---|---|---|---|---|
| SER 0808 H11 (1) | 8.0 | 8.0 | 8.0 | 100.00 | 11.00 | 11 ER/L.. |
| SER/L 1010 H11 (1) | 10.0 | 10.0 | 10.0 | 100.00 | 11.00 | 11 ER/L.. |
| SER/L 1212 F16 | 12.0 | 12.0 | 12.0 | 80.00 | 12.00 | 16 ER/L.. |
| SER 1212 X16 | 12.0 | 12.0 | 12.0 | 120.00 | 12.00 | 16 ER/L.. |
| SER/L 1616 H16 | 16.0 | 16.0 | 16.0 | 100.00 | 16.00 | 16 ER/L.. |
| SER 1616 K16G | 16.0 | 16.0 | 16.0 | 125.00 | 21.70 | 16 ER/L.. |
| SER/L 2020-16-AD | 20.0 | 20.0 | 20.0 | 67.00 | 20.00 | 16 ER/L.. |
| SER/L 2020 K16 | 20.0 | 20.0 | 20.0 | 125.00 | 20.00 | 16 ER/L.. |
| SER/L 2525 M16 | 25.0 | 25.0 | 25.0 | 150.00 | 25.00 | 16 ER/L.. |
| SER/L 3232 P16 | 32.0 | 32.0 | 32.0 | 170.00 | 32.00 | 16 ER/L.. |
| SER/L 2525 M22 | 25.0 | 25.0 | 25.0 | 150.00 | 25.00 | 22 ER/L.. |
| SER/L 3232 P22 | 32.0 | 32.0 | 32.0 | 170.00 | 32.00 | 22 ER/L.. |
| SER 4040 R22 | 40.0 | 40.0 | 40.0 | 200.00 | 40.00 | 22 ER/L.. |
| SER/L 2525 M22U | 25.0 | 25.0 | 25.0 | 150.00 | 28.00 | 22 UER/L.. |
| SER/L 3232 P22U | 32.0 | 32.0 | 32.0 | 170.00 | 32.00 | 22 UER/L.. |
| SEL 4040 R22U | 40.0 | 40.0 | 40.0 | 200.00 | 40.00 | 22 UER/L.. |
| SER/L 2525 M27 | 25.0 | 25.0 | 25.0 | 150.00 | 25.00 | 27 ER/L.. |
| SER/L 3232 P27 | 32.0 | 32.0 | 32.0 | 170.00 | 32.00 | 27 ER/L.. |
| SER 4040 R27 | 40.0 | 40.0 | 40.0 | 200.00 | 40.00 | 27 ER/L.. |
| SER/L 2525 M27U | 25.0 | 25.0 | 25.0 | 150.00 | 32.00 | 27 UER/L.. |
| SER/L 3232 P27U | 32.0 | 32.0 | 32.0 | 170.00 | 32.00 | 27 UER/L.. |
| SER/L 4040 R27U | 40.0 | 40.0 | 40.0 | 200.00 | 40.00 | 27 UER/L.. |
- Все инструменты изготовлены с углом спирали 1,5°
- Для многозубчатых пластин используйте наковальни AE16M / AI16M; AE22M / AI22M; AE27M / AI27M
- Для пластин GTGA используйте наковальню AE 16-0
Примечания:
- (1) Державка без наковальни
- (2) Правые пластины (ER) для правых инструментов (SER)
Информацию о пластинах см. на страницах: EIR/L U (722) • ER/L-55° (715) • ER/L-60° (721) • ER/L-ABUT (784) • ER/L-ACME (771) • ER/L-API (788) • ER/L-API RD (786) • ER/L-BSPT (766) • ER/L-ISO (734) • ER/L-NPT (761) • ER/L-RND (792) • ER/L-STACME (768) • ER/L-TR (780) • ER/L-UN (745) • ER/L-UNJ (775) • ER/L-W (755) • ER/L-SAGE (783) • ER-BUT (790) • ER-EL (791) • ER-PG (782) • ER-MJ (779) • ER-NPTF (765) • ER-ISO 3M-Q (733) • ER-NPT 3M-Q (760) • ER-W 3M-Q (755) • GTGA (365) • GTMA (366)
Запасные части
| Обозначение | Запасные части | |||
|---|---|---|---|---|
| SER 0808 H11 | SR M2.6-L6.7-S11 | T-8/5 | ||
| SER/L 1010 H11 | SR M2.6-L6.7-S11 | T-8/5 | ||
| SEL 1212 F16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AI16 | T-10/5 |
| SER 1212 F16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SER 1212 X16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SEL 1616 H16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AI16 | T-10/5 |
| SER 1616 H16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SER 1616 K16G | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SEL 2020-16-AD | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AI16 | T-10/5 |
| SER 2020-16-AD | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SEL 2020 K16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AI16 | T-10/5 |
| SER 2020 K16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SEL 2525 M16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AI16 | T-10/5 |
| SER 2525 M16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SEL 3232 P16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AI16 | T-10/5 |
| SER 3232 P16 | SR 5-40-L12.2-S16 | SR 5-40-L6.8-A16 | AE16 | T-10/5 |
| SEL 2525 M22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AI22 | T-20/5 |
| SER 2525 M22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AE22 | T-20/5 |
| SEL 3232 P22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AI22 | T-20/5 |
| SER 3232 P22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AE22 | T-20/5 |
| SER 4040 R22 | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AE22 | T-20/5 |
| SEL 2525 M22U | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AI22U | T-20/5 |
| SER 2525 M22U | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AE22U | T-20/5 |
| SEL 3232 P22U | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AI22U | T-20/5 |
| SER 3232 P22U | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AE22U | T-20/5 |
| SEL 4040 R22U | SR 8-32-L15-S22 | SR 8-32-L5.8-A22 | AI22U | T-20/5 |
| SEL 2525 M27 | SR M5-L22-S40 | SR M5-L5.8-A27 | AI27 | T-25/3 |
| SER 2525 M27 | SR M5-L22-S40 | SR M5-L5.8-A27 | AE27 | T-25/3 |
| SEL 3232 P27 | SR M5-L22-S40 | SR M5-L5.8-A27 | AI27 | T-25/3 |
| SER 3232 P27 | SR M5-L22-S40 | SR M5-L5.8-A27 | AE27 | T-25/3 |
| SER 4040 R27 | SR M5-L22-S40 | SR M5-L5.8-A27 | AE27 | T-25/3 |
| SEL 2525 M27U | SR M5-L22-S40 | SR M5-L5.8-A27 | AI27U | T-25/3 |
| SER 2525 M27U | SR M5-L22-S40 | SR M5-L5.8-A27 | AE27U | T-25/3 |
| SEL 3232 P27U | SR M5-L22-S40 | SR M5-L5.8-A27 | AI27U | T-25/3 |
| SER 3232 P27U | SR M5-L22-S40 | SR M5-L5.8-A27 | AE27U | T-25/3 |
| SEL 4040 R27U | SR M5-L22-S40 | SR M5-L5.8-A27 | AI27U | T-25/3 |
| SER 4040 R27U | SR M5-L22-S40 | SR M5-L5.8-A27 | AE27U | T-25/3 |
