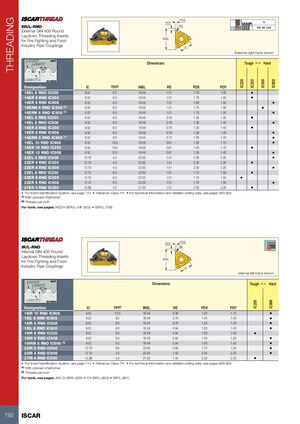

НАРЕЗКА РЕЗЬБЫ
ER/L-RND
Внешние пластины для нарезки резьбы методом однопроходного нарезания по DIN 405 для муфт пожарных и пищевой промышленности
Показано правостороннее исполнение
| Обозначение | IC | TPI(2) | INSL | RE | PDX | PDY | IC250 | IC508 | IC908 |
|---|---|---|---|---|---|---|---|---|---|
| 16EL 6 RND IC250 | 9.52 | 6.0 | 16.49 | 1.01 | 1.70 | 1.50 | • | ||
| 16ER 6 RND IC250 | 9.52 | 6.0 | 16.49 | 1.01 | 1.70 | 1.50 | • | ||
| 16ER 6 RND IC908 | 9.52 | 6.0 | 16.49 | 1.01 | 1.60 | 1.50 | • | ||
| 16ERM 6 RND IC508 (1) | 9.52 | 6.0 | 16.49 | 1.01 | 1.70 | 1.50 | • | ||
| 16ERM 6 RND IC908 (1) | 9.52 | 6.0 | 16.49 | 1.01 | 1.70 | 1.50 | • | ||
| 16EL 8 RND IC250 | 9.52 | 8.0 | 16.49 | 0.76 | 1.30 | 1.40 | • | ||
| 16EL 8 RND IC908 | 9.52 | 8.0 | 16.49 | 0.76 | 1.30 | 1.40 | • | ||
| 16ER 8 RND IC250 | 9.52 | 8.0 | 16.49 | 0.76 | 1.30 | 1.40 | • | ||
| 16ER 8 RND IC908 | 9.52 | 8.0 | 16.49 | 0.76 | 1.30 | 1.40 | • | ||
| 16ERM 8 RND IC908 (1) | 9.52 | 8.0 | 16.49 | 0.75 | 1.30 | 1.40 | • | ||
| 16EL 10 RND IC908 | 9.52 | 10.0 | 16.49 | 0.61 | 1.20 | 1.10 | • | ||
| 16ER 10 RND IC250 | 9.52 | 10.0 | 16.49 | 0.61 | 1.20 | 1.10 | • | ||
| 16ER 10 RND IC908 | 9.52 | 10.0 | 16.49 | 0.61 | 1.30 | 1.40 | • | ||
| 22EL 4 RND IC908 | 12.70 | 4.0 | 22.00 | 1.51 | 2.30 | 2.20 | • | ||
| 22ER 4 RND IC250 | 12.70 | 4.0 | 22.00 | 1.51 | 2.30 | 2.20 | • | ||
| 22ER 4 RND IC908 | 12.70 | 4.0 | 22.00 | 1.51 | 2.30 | 2.20 | • | ||
| 22EL 6 RND IC250 | 12.70 | 6.0 | 22.00 | 1.01 | 1.70 | 1.50 | • | ||
| 22ER 6 RND IC228 | 12.70 | 6.0 | 22.00 | 1.01 | 1.70 | 1.50 | |||
| 22ER 6 RND IC908 | 12.70 | 6.0 | 22.00 | 1.01 | 1.70 | 1.50 | • | ||
| 27ER 4 RND IC250 | 15.88 | 4.0 | 27.50 | 1.51 | 2.30 | 2.20 | • |
(1) С прессованным подламывателем стружки
(2) Витков на дюйм
IR/L-RND
Внутренние пластины для нарезки резьбы методом однопроходного нарезания по DIN 405 для муфт пожарных и пищевой промышленности
Показано левостороннее исполнение
| Обозначение | IC | TPI(2) | INSL | RE | PDX | PDY | IC250 | IC908 |
|---|---|---|---|---|---|---|---|---|
| 16IR 10 RND IC908 | 9.52 | 10.0 | 16.49 | 0.36 | 1.20 | 1.10 | • | |
| 16IL 8 RND IC908 | 9.52 | 8.0 | 16.49 | 0.70 | 1.40 | 1.40 | • | |
| 16IR 8 RND IC908 | 9.52 | 8.0 | 16.49 | 0.70 | 1.40 | 1.40 | • | |
| 16IL 6 RND IC908 | 9.52 | 6.0 | 16.49 | 0.94 | 1.50 | 1.40 | • | |
| 16IR 6 RND IC250 | 9.52 | 6.0 | 16.49 | 0.94 | 1.50 | 1.40 | • | |
| 16IR 6 RND IC908 | 9.52 | 6.0 | 16.49 | 0.94 | 1.40 | 1.50 | • | |
| 16IRM 6 RND IC908 (1) | 9.52 | 6.0 | 16.49 | 0.94 | 1.50 | 1.40 | • | |
| 22IR 6 RND IC908 | 12.70 | 6.0 | 22.00 | 0.94 | 1.70 | 1.50 | • | |
| 22IR 4 RND IC908 | 12.70 | 4.0 | 22.00 | 1.40 | 2.30 | 2.20 | • | |
| 27IR 4 RND IC250 | 15.88 | 4.0 | 27.50 | 1.40 | 2.30 | 2.20 | • |
(1) С прессованным подламывателем стружки
(2) Витков на дюйм
