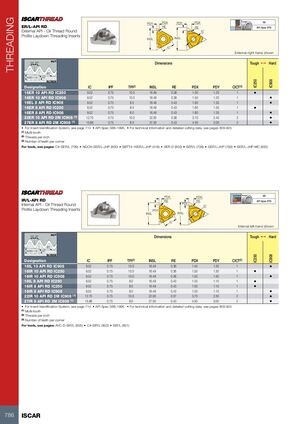

НАРЕЗКА
ER/L-API RD
Внешняя трубная резьба профиля API
Пластины слоевой нарезки профиля
5B
API Spec STD
Показана внешняя правая
Размеры
| Обозначение | IC | IPF | TPI(2) | INSL | RE | PDX | PDY | CICT(3) | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|---|---|
| 16ER 10 API RD IC250 | 9.52 | 0.75 | 10.0 | 16.49 | 0.36 | 1.50 | 1.20 | 1 | • | |
| 16ER 10 API RD IC908 | 9.52 | 0.75 | 10.0 | 16.49 | 0.36 | 1.50 | 1.20 | 1 | • | |
| 16EL 8 API RD IC908 | 9.52 | 0.75 | 8.0 | 16.49 | 0.43 | 1.60 | 1.35 | 1 | • | |
| 16ER 8 API RD IC250 | 9.52 | 0.75 | 8.0 | 16.49 | 0.43 | 1.60 | 1.35 | 1 | • | |
| 16ER 8 API RD IC908 | 9.52 | 0.75 | 8.0 | 16.49 | 0.43 | 1.60 | 1.35 | 1 | • | |
| 22ER 10 API RD 2M IC908 (1) | 12.70 | 0.75 | 10.0 | 22.00 | 0.36 | 3.70 | 2.40 | 2 | • | |
| 27ER 8 API RD 2M IC908 (1) | 15.88 | 0.75 | 8.0 | 27.50 | 0.43 | 4.50 | 3.00 | 2 | • |
Система идентификации пластин см. страницу 714 • API Spec 5B8-1996 • Технические сведения и детальные параметры резания см. страницы 809–825
(1) Многозубые
(2) Витков на дюйм
(3) Количество зубьев на кромку
Инструменты см. страницы: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
IR/L-API RD
Внутренняя трубная резьба профиля API
Пластины слоевой нарезки профиля
5B
API Spec STD
Показана внутренняя левая
Размеры
| Обозначение | IC | IPF | TPI(2) | INSL | RE | PDX | PDY | CICT(3) | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|---|---|
| 16IL 10 API RD IC908 | 9.52 | 0.75 | 10.0 | 16.49 | 0.36 | 1.45 | 1.30 | 1 | • | |
| 16IR 10 API RD IC250 | 9.52 | 0.75 | 10.0 | 16.49 | 0.36 | 1.50 | 1.30 | 1 | • | |
| 16IR 10 API RD IC908 | 9.52 | 0.75 | 10.0 | 16.49 | 0.36 | 1.50 | 1.30 | 1 | • | |
| 16IL 8 API RD IC250 | 9.52 | 0.75 | 8.0 | 16.49 | 0.43 | 1.45 | 1.10 | 1 | • | |
| 16IR 8 API RD IC250 | 9.52 | 0.75 | 8.0 | 16.49 | 0.43 | 1.50 | 1.10 | 1 | • | |
| 16IR 8 API RD IC908 | 9.52 | 0.75 | 8.0 | 16.49 | 0.43 | 1.50 | 1.10 | 1 | • | |
| 22IR 10 API RD 2M IC908 (1) | 12.70 | 0.75 | 10.0 | 22.00 | 0.37 | 3.70 | 2.30 | 2 | • | |
| 27IR 8 API RD 2M IC908 (1) | 15.88 | 0.75 | 8.0 | 27.50 | 0.43 | 4.50 | 3.00 | 2 | • |
Система идентификации пластин см. страницу 714 • API Spec 5B8-1996 • Технические сведения и детальные параметры резания см. страницы 809–825
(1) Многозубые
(2) Витков на дюйм
(3) Количество зубьев на кромку
Инструменты см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
