Материалы и сорта

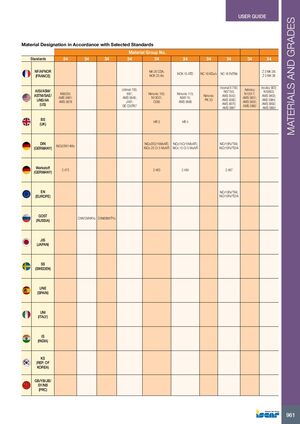

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов: 34
| Стандарт | Материал 1 | Материал 2 | Материал 3 | Материал 4 | Материал 5 | Материал 6 | Материал 7 |
|---|---|---|---|---|---|---|---|
| NF/AFNOR (Франция) | NK 20 CDA; NCK 20 Atv | NCK 15 ATD | NC 19 KDu/v | NC 16 FeTNb | Z 3 NK 28; Z 3 NK 38 | ||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | N06230; AMS 5891; AMS 5878 | Udimet 700; AMS 5846; J467; GE C50T67 | Nimonic 105; N13021; C565 | Nimonic 115; N06115; AMS 5666 | Nimonic PK 33 | Inconel X-750; N07750; AMS 5542; AMS 5582; AMS 5670; AMS 5667 | |
| AISI/ASM/ASTM/SAE/UNS/AA (США) продолжение | Incoloy 903; Astroloy; N19903; N13017; AMS 5803; AMS 5851; AMS 5852; ANS 5884; AMS 5892; AMS 5882; AMS 5893 | ||||||
| BS (Великобритания) | HR 3 | HR 4 | |||||
| DIN (Германия) | NiCr22W14Mo | NiCo20Cr15MoAlTi; NiCo 20 Cr 5 MoAlTi | NiCo15Cr15MoAlTi; NiCo 15 Cr 5 MoAlTi | NiCr15Fe7TiAl; NiCr15Fe7Ti2Al | |||
| Werkstoff (Германия) | 2.473 | 2.463 | 2.464 | 2.467 | |||
| EN (Европа) | NiCr15Fe7TiAl; NiCr15Fe7Ti2Al | ||||||
| GOST (Россия) | ChN72MVKYu | ChN60MVTYu | |||||
| JIS (Япония) | |||||||
| SS (Швеция) | |||||||
| UNE (Испания) | |||||||
| UNI (Италия) | |||||||
| IS (Индия) | |||||||
| KS (Республика Корея) | |||||||
| GB/YB/JB/SY/NB (КНР) |
