Материалы и сорта

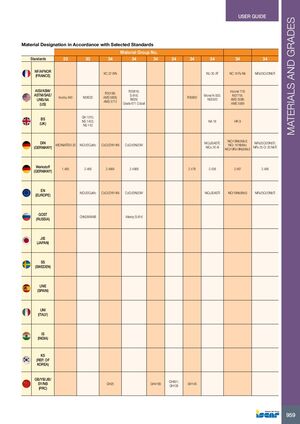

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов: 33–34
| Стандарт | Материал 1 | Материал 2 | Материал 3 | Материал 4 | Материал 5 | Материал 6 | Материал 7 | Материал 8 |
|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (Франция) | KC 22 WN | NU 30 AT | NC 19 Fe Nb | NiFe25Cr20NbTi | ||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | Incoloy 840 | N08020 | R30188; R30816; S-816; AMS 5608; AMS 5772 | B639; Grade 671 Cobalt | R30600 | Monel K-500; N05500 | Inconel 718; N07718; AMS 5596; AMS 5589 | |
| BS (Великобритания) | GH 1015; NS 1403; NS 143 | NA 18 | HR 8 | |||||
| DIN (Германия) | X8CrNiAlTi20-20 | NiCr20CuMo | CoCr22W14Ni | CoCr20Ni20W | NiCu30Al3Ti; NiCu 30 Al | NiCr19Nb5Mo3; NiCr 19 NbMo; NiCr19Fe19Nb5Mo3 | NiFe25Cr20NbTi; NiFe 25 Cr 20 NbTi | |
| Werkstoff (Германия) | 1.485 | 2.466 | 2.4964 | 2.4989 | 2.478 | 2.438; 2.467 | 2.496 | |
| EN (Европа) | NiCr20CuMo | CoCr22W14Ni | CoCr20Ni20W | NiCu30Al3Ti | NiCr19Nb5Mo3 | NiFe25Cr20NbTi | ||
| GOST (Россия) | ChN28VMAB | Altemp S-816 | ||||||
| JIS (Япония) | ||||||||
| SS (Швеция) | ||||||||
| UNE (Испания) | ||||||||
| UNI (Италия) | ||||||||
| IS (Индия) | ||||||||
| KS (Республика Корея) | ||||||||
| GB/YB/JB/SY/NB (КНР) | GH25 | GH901; GH109; GH4169; GH146 |
