Материалы и сорта

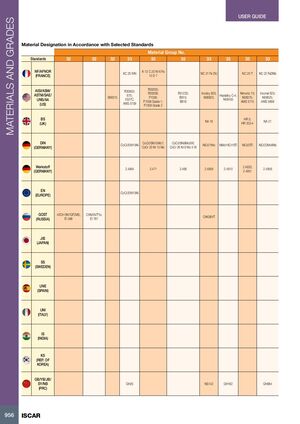

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов: 32–33
| Стандарт | Группа 32 | Группа 33 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (Франция) | K 13 C 20 N16 Fe KC 20 WN 15 D 7 | NC 21 Fe DU | NC 20 T | NC 22 FeDNb | |||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | S66315 | R30605; R30003; R30008; R31233; 5537C | Incoloy 825; N08825; F1058; F1058 Grade 1; F1058 Grade 2; AMS 5759 | Hastelloy C-4; B815; B818 | Nimonic 75; N06075; N06455 | Inconel 625; N06625; AMS 5715; AMS 5666 | |||
| BS (Великобритания) | NA 16 | HR 5; HR 203-4 | NA 21 | ||||||
| DIN (Германия) | CoCr20W15Ni | CoCr20Ni15Mo7; CoCr 20 Ni 15 Mo; CoCr26Ni9Mo5W; CoCr 26 Ni 9 Mo 5 W | NiCr21Mo | NiMo16Cr16Ti; NiCr20Ti; NiCr22Mo9Nb | |||||
| Werkstoff (Германия) | 2.4964 | 2.471 | 2.468 | 2.4858; 2.4610; 2.4630; 2.4951 | 2.4856 | ||||
| EN (Европа) | CoCr20W15Ni | ||||||||
| GOST (Россия) | 40Ch15N7GF2MS; EI 388 | ChN35VTYu; EI 787 | ChN38VT | ||||||
| JIS (Япония) | |||||||||
| SS (Швеция) | |||||||||
| UNE (Испания) | |||||||||
| UNI (Италия) | |||||||||
| IS (Индия) | |||||||||
| KS (Республика Корея) | |||||||||
| GB/YB/JB/SY/NB (КНР) | GH25 | NS142 | GH182; GH984 | ||||||
