МАТЕРИАЛЫ И СОРТА

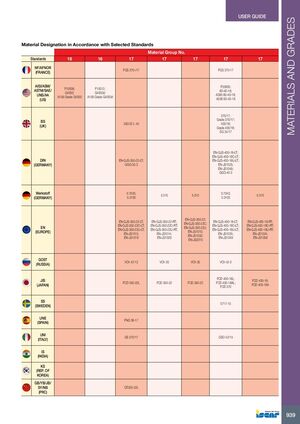

Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 16, 16, 17, 17, 17, 17, 17
| Стандарты | Группа 16 | Группа 16 | Группа 17 | Группа 17 | Группа 17 | Группа 17 | Группа 17 |
|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | FGS 370-/17 | FGS 370-17 | |||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | F10008; G4000; A159 Grade G4000 | F10012; G4000d; A159 Grade G4000d | F32800; 60-40-18; A395 60-40-18; A536 60-40-18 | ||||
| BS (ВЕЛИКОБРИТАНИЯ) | 350/22 L 40 | 370/17; Grade 370/17; 400/18; Grade 400/18; SG 24/17 | |||||
| DIN (ГЕРМАНИЯ) | EN-GJS-350-22-LT; GGG-35.3 | EN-GJS-400-18-LT; EN-GJS-400-18C-LT; EN-GJS-400-18U-LT; EN-JS1025; EN-JS1049; GGG-40.3 | |||||
| Werkstoff (ГЕРМАНИЯ) | 0.7033; 5.3100 | 5.310 | 5.310 | 0.7043; 5.3103 | |||
| EN (ЕВРОПА) | EN-GJS-350-22-LT; EN-GJS-350-22C-LT; EN-GJS-350-22U-LT; EN-JS1015; EN-JS1019 | EN-GJS-350-22; EN-GJS-350-22-RT; EN-GJS-350-22C-RT; EN-GJS-350-22U-RT; EN-JS1014; EN-JS1029 | EN-GJS-350-22C; EN-JS1010; EN-JS1032; EN-JS2010 | EN-GJS-400-18-LT; EN-GJS-400-18C-LT; EN-GJS-400-18U-LT; EN-JS1025; EN-JS1024; EN-JS1049; EN-JS1059 | EN-GJS-400-18-RT; EN-GJS-400-18C-RT; EN-GJS-400-18U-RT | ||
| GOST (РОССИЯ) | VCh 42-12 | VCh 35 | VCh 35 | VCh 42-2 | |||
| JIS (ЯПОНИЯ) | FCD 350-22L | FCD 350-22 | FCD 350-22 | FCD 400-18L; FCD 400-18; FCD 400-18AL; FCD 370; FCD 400-18A | |||
| SS (ШВЕЦИЯ) | 0717-15 | ||||||
| UNE (ИСПАНИЯ) | FNG 38-17 | ||||||
| UNI (ИТАЛИЯ) | GS 370/17 | GSO 42/15 | |||||
| IS (ИНДИЯ) | |||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | |||||||
| GB/YB/JB/SY/NB (КНР) | QT350-22L |
