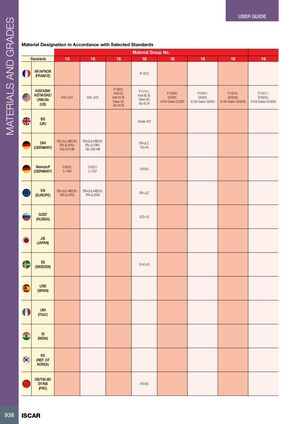

МАТЕРИАЛЫ И СОРТА
Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 16, 16, 16, 16, 16, 16, 16, 16
| Стандарты | Группа 16 | Группа 16 | Группа 16 | Группа 16 | Группа 16 | Группа 16 | Группа 16 | Группа 16 |
|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Ft 40 D | |||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | H18 J431 | H20 J431 | F13801; A48-55; A48-55 B; Class 55; No 60 B | F14101; A48-60 B; Class 60; No 60 B | F10006; G3000; A159 Grade G3000 | F10007; G3500; A159 Grade G3500 | F10010; G3500b; A159 Grade G3500b | F10011; G3500c; A159 Grade G3500c |
| BS (ВЕЛИКОБРИТАНИЯ) | Grade 400 | |||||||
| DIN (ГЕРМАНИЯ) | EN-GJL-HB235; EN-JL2050; GG-240 HB | EN-GJL-HB255; EN-JL2060; GG-260 HB | ||||||
| Werkstoff (ГЕРМАНИЯ) | 0.6032; 5.1306 | 0.6037; 5.1307 | ||||||
| EN (ЕВРОПА) | EN-GJL-HB235; EN-JL2050 | EN-GJL-HB255; EN-JL2060 | ||||||
| GOST (РОССИЯ) | SCh 40 | |||||||
| JIS (ЯПОНИЯ) | ||||||||
| SS (ШВЕЦИЯ) | 0140-00 | |||||||
| UNE (ИСПАНИЯ) | ||||||||
| UNI (ИТАЛИЯ) | ||||||||
| IS (ИНДИЯ) | ||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | ||||||||
| GB/YB/JB/SY/NB (КНР) | HT400 |
