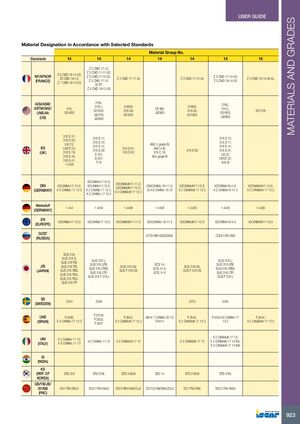

РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки
Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материала № 14 | ||||||
|---|---|---|---|---|---|---|---|
| НФ/АФНОР (ФРАНЦИЯ) |
Z 6 CND 18-12-03; Z 6 CND 18-13; Z 7 CND 18-12-03 | Z 2 CND 17-12; Z 3 CND 17-11-02; Z 3 CND 17-12-02; Z 3 CND 17-12-02 FF; Z 3 CND 18-12-03 | Z 2 CND 17-11 Az | Z 3 CND 17-12 Az | Z 3 CND 18-14-05 Az; Z 3 CND 18-14-03 | ||
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
316; S31600 | 316L; 316 L; S31603; J92700; J92800 | 316LN; 316 LN; S31653 | CF-8M; J92900 | 316LN; 316 L; 316 LN; S31563; S31603; J92800 | S31726 | |
| БС (ВЕЛИКОБРИТАНИЯ) |
316 S 31; 316 S 33; LW 23; LWCF 23; 316 S 19; 316 S 40; 316 S 41; 1.4436 | 316 S 11; 316 S 13; 316 S 14; 316 S 30; S.161; S.537; T.75 | 316 S 61; 316 S 63; 316 C 16; 845 grade B | ANC 4 grade B; ANC 4 B; 316 S 63 | 316 S 13; 316 S 11; 316 S 14; 316 S 31 | LW 22; LWCF 22; 845 B | |
| ДИН (ГЕРМАНИЯ) |
X3CrNiMo17-13-3; X 5 CrNiMo 17 13 3; X 2 CrNiMo 17 12 2 | X2CrNiMo17-12-2; X2CrNiMo17-13-2; X 2 CrNiMo 17 13 2; X2CrNiMoN17-12-2; X 2 CrNiMoN 17 12 2 | X2CrNiMoN17-11-2 | GX5CrNiMo 19-11-2; G-X 6 CrNiMo 18 10 | X2CrNiMoN17-13-3; X 2 CrNiMoN 17 13 3 | X2CrNiMo18-4-3; X 2 CrNiMo18 14 3 | X2CrNiMoN17-13-5; X 2 CrNiMoN 17 13 5 |
| Werkstoff (ГЕРМАНИЯ) |
1.444 | 1.4404 | 1.4406 | 1.4408 | 1.4429 | 1.4435 | 1.4439 |
| ЕН (ЕВРОПА) |
X3CrNiMo17-13-3 | X2CrNiMo17-13-2 | X2CrNiMoN17-11-2 | GX5CrNiMo 19-11-2 | X2CrNiMoN17-13-3 | X2CrNiMo18-4-3 | X2CrNiMoN17-13-5 |
| ГОСТ (РОССИЯ) |
07Ch18N10G2S2M2L | O3Ch17N14M3 | |||||
| ДжИС (ЯПОНИЯ) |
SUS 316; SUS 316 A; SUS 316 FB; SUS 316 TB; SUS 316 TBS; SUS 316 TKA; SUS 316 TKC; SUS 316 TP | SUS 316 L; SUS 316 LFB; SUS 316 LTBS; SUS 316 LTP; SUS 316 F 316 L | SUS 316 LN; SUS F 316 LN | SCS 14; SCS 14 A; SCS 14 X | SUS 316 LN; SUS 316 LFB; SUS 316 LTBS; SUS F 316 LN | SUS 316 L; SUS 316 LTP; SUS F 316 L | |
| СС (ШВЕЦИЯ) |
2343 | 2348 | 2375 | 2353 | |||
| УНЕ (ИСПАНИЯ) |
X 5 CrNiMo 17 13 3; F.3508; F.3538 | F.310.K; F.3533; F.3537; F.3535 | X 2 CrNiMoN 17 12 2 | F.3542; AM-X 7 CrNiMo 20 10; F.8414 | F.3543; X 2 CrNiMoN 17 13 3 | F.3533-X2 CrNiMo 17 13 2 | F.3544; X 2 CrNiMoN 17 13 5 |
| УНИ (ИТАЛИЯ) |
X 5 CrNiMo 17 13; X 8 CrNiMo 17 13 | X 2 CrNiMo 17 12 | X 2 CrNiMoN 17 12 | X 2 CrNiMoN 17 13; X 2 CrNiMoN 17 13 KG; X 2 CrNiMoN 17 13 KW | X 2 CrNiMo18 14 3 | ||
| ИС (ИНДИЯ) |
|||||||
| КС (РЕП. КОРЕЯ) |
STS 316 | STS 316L | STS 316LN | SSC 14 | STS 316LN | STS 316L | |
| ГБ/УБ/ДжБ/СХ/НБ (КНР) |
0Cr17Ni12Mo2 | 00Cr17Ni14Mo2 | 00Cr18Ni14Mo2Cu2 | ZG1Cr24Ni20Mo2Cu3 | 0Cr17Ni13Mo | 00Cr17Ni14Mo2 | |
