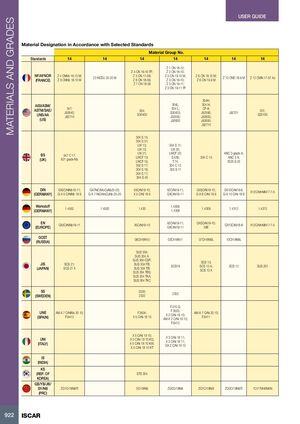

РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И МАРКИ
Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материалов | ||||||
|---|---|---|---|---|---|---|---|
| 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| NF/AFNOR (ФРАНЦИЯ) |
Z 4 CNNb 19.10 M; Z 6 CNNb 18.10 M | 23 NCDU 25.20 M | Z 4 CN 19-10 FF; Z 5 CN 17-08; Z 6 CN 18-09; Z 7 CN 18-09 | Z 1 CN 18-12; Z 2 CN 18-10; Z 3 CN 19.10 M; Z 3 CN 18-10; Z 3 CN 19-11; Z 3 CN 19-11 FF | Z 6 CN 18.10 M; Z 6 CN 19.9 M | Z 10 CND 18.9 M | Z 12 CMN 17-07 Az |
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
347; J92640; J82710 | 304; S30400 | 304H; 304L; 304 H; 304 L; CF-8; S30403; J92500; J92600 | J92590; J92600; J92650; J92710 | J92701 | 201; S20100 | |
| BS (ВЕЛИКОБРИТАНИЯ) |
347 C 17; 821 grade Nb | 304 S 15; 304 S 31; LW 13; LW 15; LW 21; LWCF 13; LWCF 15; 302 S 17; 304 S 16; 304 S 17; 304 S 40 | 304 S 11; LW 20; LWCF 20; S.536; T.74; 304 C 12; 305 S 11 | ANC 3 grade A; ANC 3 A; 302 C 25 | 3025 S 25 | ||
| DIN (ГЕРМАНИЯ) |
GX5CrNiNb19-11; G-X 5 CrNiNb 18 9 | GX7NiCrMoCuNb25-20; G-X 7 NiCrMoCuNb 25-20 | X5CrNi18-10; X 5 CrNi 18 9 | X2CrNi19-11; GXCrNi19-11 | GX5CrNi19-10; G-X 6 CrNi 18 9 | GX10CrNi18-8; G-X 10 CrNi 18 8 | X12CrMnNiN17-7-5 |
| Werkstoff (ГЕРМАНИЯ) |
1.4552 | 1.4500 | 1.430; 1.4306; 1.4309 | 1.4306; 1.4309 | 1.4308; 1.4312 | 1.4372 | |
| EN (ЕВРОПА) |
GX5CrNiNb19-11 | X5CrNi18-10 | X2CrNi19-11; GXCrNi19-11; 58E | GX10CrNi18-8 | X12CrMnNiN17-7-5 | ||
| GOST (РОССИЯ) |
08Ch18N10 | 03Ch18N11 | 07Ch18N9L | 10Ch18N9L | |||
| JIS (ЯПОНИЯ) |
SCS 21; SCS 21 X | SUS 304; SUS 304 A; SUS 304-CSP; SUS 304 FB; SUS 304 TB; SUS 304 TBS; SUS 304 TKA; SUS 304 TKC | SCS 19 | SCS 13; SCS 13 A; SCS 13 X | SCS 12 | SUS 201 | |
| SS (ШВЕЦИЯ) |
2333; 2332 | 2352 | |||||
| UNE (ИСПАНИЯ) |
AM-X 7 CrNiNb 20 10; F.8413 | F.310.G; F.3503; F.3504; X 5 CrNi 18 10 | X 2 CrNi 19 10; AM-X 2 CrNi 19 10; F.8412 | AM-X 7 CrNi 20 10; F.8411 | |||
| UNI (ИТАЛИЯ) |
X 5 CrNi 18 10; X 5 CrNi 18 10 KG; X 5 CrNi 18 10 KW; X 5 CrNi 18 10 KT | X 3 CrNi 18 11; X 2 CrNi 18 11; GX 2 CrNi 19 10 | |||||
| IS (ИНДИЯ) |
|||||||
| KS (РЕСПУБЛИКА КОРЕЯ) |
STS 304 | ||||||
| GB/YB/JB/SY/NB (КНР) |
ZG1Cr18Ni9Ti | 0Cr19Ni9 | ZG0Cr18Ni9 | ZG1Cr18Ni9 | ZG0Cr18Ni9Ti | 1Cr17Mn6Ni5N | |
