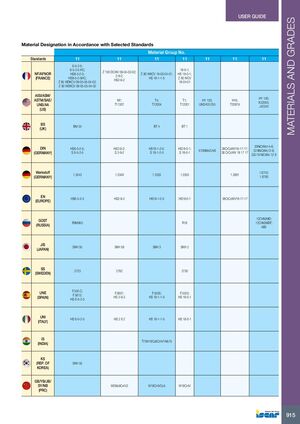

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материалов 11 | ||||||
|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | 6-5-2-5; 6-5-2-5 HC; HS6-5-2-5; HS6-5-2-5HC; Z 85 WDKCV 06-05-05-04-02; Z 90 WDKCV 06-05-05-04-02 | Z 100 DCWV 09-04-02-02; 2-9-2; HS2-9-2 | Z 80 WKCV 19-05-04-01; HS 18-1-1-5; 18-04-01; Z 80 WCV | 18-0-1; HS 18-0-1 | |||
| AISI/ASM/ ASTM/SAE/ UNS/AA (США) | M7; T11307 | T4; T12004 | T1; T12001 | HY 100; HY 130; K32045; J42240; UNS K51255 | H19; T20819 | ||
| BS (ВЕЛИКОБРИТАНИЯ) | BM 35 | BT 4 | BT 1 | ||||
| DIN (ГЕРМАНИЯ) | HS6-5-2-5; S 6-5-2-5 | HS2-9-2; S 2-9-2 | HS18-1-2-5; S 18-1-2-5 | HS18-0-1; S 18-0-1 | X10NiMoCrV6; 20NiCrMo14-6; G19NiCrMo12-6; GS-19 NiCrMo 12 6 | 38CrCoWV18-17-17; 38 CrCoWV 18 17 17 | |
| Werkstoff (ГЕРМАНИЯ) | 1.3243 | 1.3348 | 1.3255 | 1.3355 | 1.2661; 1.6742; 1.6783 | ||
| EN (ЕВРОПА) | HS6-5-2-5 | HS2-9-2 | HS18-1-2-5 | HS18-0-1 | 38CrCoWV18-17-17 | ||
| GOST (РОССИЯ) | R6M5K5 | R18 | 12ChN3MD; 12ChN3MDF; AB2 | ||||
| JIS (ЯПОНИЯ) | SKH 55 | SKH 58 | SKH 3 | SKH 2 | |||
| SS (ШВЕЦИЯ) | 2723 | 2782 | 2750 | ||||
| UNE (ИСПАНИЯ) | F.550.C; F.5613; HS 6-5-2-5 | F.5607; HS 2-9-2 | F.5530; HS 18-1-1-5 | F.5520; HS 18-0-1 | |||
| UNI (ИТАЛИЯ) | HS 6-5-2-5 | HS 2 9 2 | HS 18-1-1-5 | HS 18-0-1 | |||
| IS (ИНДИЯ) | T75W18Co6Cr4V1Mo75 | ||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | SKH 55 | ||||||
| GB/YB/JB/SY/NB (КНР) | W2Mo9Cr4V2 | W18Cr4VCo5 | W18Cr4V | ||||
