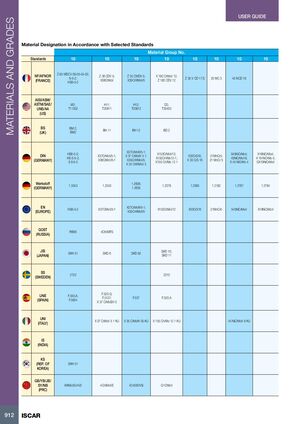

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материалов 10 | |||||||
|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Z 85 WDCV 06-05-04-02; 6-5-2; HS6-5-2 | Z 38 CDV 5; X38CrMoV | Z 35 CWDV 5; X35CrWMoV5 | X 160 CrMoV 12; Z 160 CDV 12 | Z 35 V CD 17.S | 20 MC 5 | 45 NCD 16 | |
| AISI/ASM/ ASTM/SAE/ UNS/AA (США) | M2; T11302 | H11; T20811 | H12; T20812 | D2; T30402 | ||||
| BS (ВЕЛИКОБРИТАНИЯ) | BM 2; BM2 | BH 11 | BH 12 | BD 2 | ||||
| DIN (ГЕРМАНИЯ) | HS6-5-2; HS 6-5-2; S 6-5-2 | X37CrMoV5-1; X37CrMoW5-1; X38CrMoV5-1; X 37 CrMoW 5 1; X38CrMoV | X 37 CrMoW 5 1; X35CrWMoV5; X 35 CrWMoV 5 | X153CrMoV12; X155CrVMo12-1; X155 CrVMo 12 1 | X33CrS16; X 33 CrS 16 | 21MnCr5; 21 MnCr 5 | X45NiCrMo4; X 45 NiCrMo 4 | X19NiCrMo4; X 19 NiCrMo 4; GX19NiCrMo4; 45NiCrMo16 |
| Werkstoff (ГЕРМАНИЯ) | 1.3343 | 1.2343 | 1.2606; 1.2605 | 1.2379 | 1.2085 | 1.2162 | 1.2767 | 1.2764 |
| EN (ЕВРОПА) | HS6-5-2 | X37CrMoV5-1 | X37CrMoW5-1; X35CrWMoV5 | X153CrMoV12 | X33CrS16 | 21MnCr5 | X45NiCrMo4 | X19NiCrMo4 |
| GOST (РОССИЯ) | R6M5 | 4Ch5MFS | ||||||
| JIS (ЯПОНИЯ) | SKH 51 | SKD 6 | SKD 62 | SKD 10; SKD 11 | ||||
| SS (ШВЕЦИЯ) | 2722 | 2310 | ||||||
| UNE (ИСПАНИЯ) | F.550.A; F.5604 | F.520.G; F.5137; X 37 CrMoSiV 5 | F.537 | F.520.A | ||||
| UNI (ИТАЛИЯ) | X 37 CrMoV 5 1 KU | X 35 CrMoW 05 KU | X 155 CrVMo 12 1 KU | 40 NiCrMoV 8 KU | ||||
| IS (ИНДИЯ) | ||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | SKH 51 | |||||||
| GB/YB/JB/SY/NB (КНР) | W6Mo5Cr4V2 | 4Cr5MoVS | 4Cr5W2VSi | Cr12MoV | ||||
