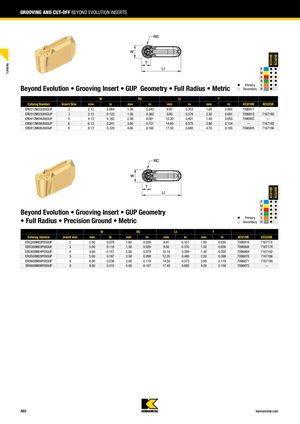

GROOVING AND CUT-OFF BEYOND EVOLUTION INSERTS KCU10B KCU25B TURNING P 䢇 䢇 M 䢇 䢇 K 䢇 䢇 N 䢇 䢇 䢇 Primary S 䢇 䢇 Beyond Evolution • Grooving Insert • GUP Geometry • Full Radius • Metric 嘷 Secondary H 䢇 W RC LI T Catalog Number Insert Size mm in mm in mm in mm in KCU10B KCU25B ER0212M02U00GUP 2 2.12 0.084 1.06 0.042 8.97 0.353 1.65 0.065 7096917 — ER0312M03U00GUP 3 3.13 0.123 1.56 0.062 9.60 0.378 2.30 0.091 7096915 7167180 ER0412M04U00GUP 4 4.13 0.162 2.06 0.081 10.20 0.401 1.40 0.055 7096902 — ER0612M06U00GUP 6 6.13 0.241 3.06 0.121 14.60 0.575 3.90 0.154 — 7167192 ER0812M08U00GUP 8 8.13 0.320 4.06 0.160 17.50 0.688 4.70 0.185 7096905 7167196 KCU10B KCU25B P 䢇 䢇 M 䢇 䢇 K 䢇 䢇 Beyond Evolution • Grooving Insert • GUP Geometry N 䢇 䢇 䢇 Primary S 䢇 䢇 • Full Radius • Precision Ground • Metric 嘷 Secondary H 䢇 W RC LI T Catalog number insert size mm in mm in mm in mm in KCU10B KCU25B ER0200M02P00GUP 2 2.00 0.079 1.00 0.039 8.91 0.351 1.00 0.039 7096918 7167174 ER0300M03P00GUP 3 3.00 0.118 1.50 0.059 9.50 0.376 1.50 0.059 7096868 7167178 ER0400M04P00GUP 4 4.00 0.157 2.00 0.079 10.10 0.399 1.40 0.055 7096869 7167182 ER0500M05P00GUP 5 5.00 0.197 2.50 0.098 12.20 0.480 2.50 0.098 7096870 7167186 ER0600M06P00GUP 6 6.00 0.236 3.00 0.118 14.50 0.572 3.00 0.118 7096871 7167190 ER0800M08P00GUP 8 8.00 0.315 4.00 0.157 17.40 0.685 4.00 0.158 7096872 — A65 kennametal.com
