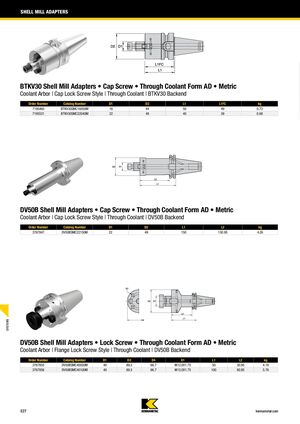

Адаптеры для концевых фрез BTKV30 • Винт крепления • Форма AD со сквозной подачей СОЖ • Метрические
Вращающийся адаптер | Стиль фиксации винтом • Со сквозной подачей СОЖ | Хвостовик BTKV30
| Номер заказа | Номер каталога | D1 | D2 | L1 | L1FC | кг |
|---|---|---|---|---|---|---|
| 7195460 | BTKV30SMC16050M | 16 | 44 | 50 | 49 | 0.73 |
| 7195531 | BTKV30SMC22040M | 22 | 49 | 40 | 39 | 0.68 |
Адаптеры для концевых фрез DV50B • Винт крепления • Форма AD со сквозной подачей СОЖ • Метрические
Вращающийся адаптер | Стиль фиксации винтом • Со сквозной подачей СОЖ | Хвостовик DV50B
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | кг |
|---|---|---|---|---|---|---|
| 3767847 | DV50BSMC22150M | 22 | 49 | 150 | 130.95 | 4.26 |
Адаптеры для концевых фрез DV50B • Винт фиксации • Форма AD со сквозной подачей СОЖ • Метрические
Вращающийся адаптер | Стиль фиксации винтом на фланце | Со сквозной подачей СОЖ | Хвостовик DV50B
| Номер заказа | Номер каталога | D1 | D2 | D4 | G1 | L1 | L2 | кг |
|---|---|---|---|---|---|---|---|---|
| 3767855 | DV50BSMC40050M | 40 | 89.3 | 66.7 | M12.0X1.75 | 50 | 30.95 | 4.18 |
| 3767856 | DV50BSMC40100M | 40 | 89.3 | 66.7 | M12.0X1.75 | 100 | 80.95 | 5.76 |
