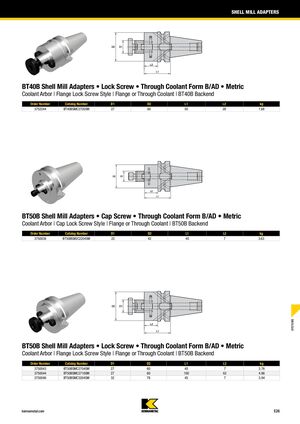

Адаптеры для концевых фрез BT40B • Винт фиксации • Форма B/AD со сквозной подачей СОЖ • Метрические
Вращающийся адаптер | Стиль фиксации винтом на фланце | Фланец или со сквозной подачей СОЖ | Хвостовик BT40B
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | кг |
|---|---|---|---|---|---|---|
| 3752244 | BT40BSMC27055M | 27 | 60 | 55 | 28 | 1.68 |
Адаптеры для концевых фрез BT50B • Винт крепления • Форма B/AD со сквозной подачей СОЖ • Метрические
Вращающийся адаптер | Стиль фиксации винтом • Фланец или со сквозной подачей СОЖ | Хвостовик BT50B
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | кг |
|---|---|---|---|---|---|---|
| 3750038 | BT50BSM2C22045M | 22 | 42 | 45 | 7 | 3.63 |
Адаптеры для концевых фрез BT50B • Винт фиксации • Форма B/AD со сквозной подачей СОЖ • Метрические
Вращающийся адаптер | Стиль фиксации винтом на фланце | Фланец или со сквозной подачей СОЖ | Хвостовик BT50B
| Номер заказа | Номер каталога | D1 | D2 | L1 | L2 | кг |
|---|---|---|---|---|---|---|
| 3750043 | BT50BSMC27045M | 27 | 60 | 45 | 7 | 3.76 |
| 3750044 | BT50BSMC27100M | 27 | 60 | 100 | 62 | 4.86 |
| 3750046 | BT50BSMC32045M | 32 | 78 | 45 | 7 | 3.94 |
