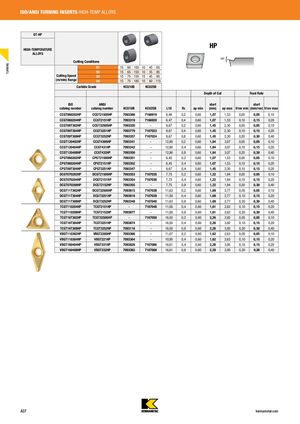

ISO/ANSI TURNING INSERTS HIGH-TEMP ALLOYS GT-HP HIGH-TEMPERATURE HP ALLOYS Cutting Conditions TURNING S1 15 60 155 10 45 65 S2 15 65 155 10 35 85 Cutting Speed S3 15 75 155 15 45 85 (m/min) Range S4 15 75 185 10 60 115 Carbide Grade KCU10B KCU25B Depth of Cut Feed Rate ISO ANSI start start catalog number catalog number KCU10B KCU25B L10 Rı ap min (mm) ap max f/rev min (mm/rev) f/rev max CCGT060202HP CCGT21505HP 7093380 7166919 6,46 0,2 0,60 1,07 1,53 0,05 0,05 0,10 CCGT060204HP CCGT2151HP 7093319 7166920 6,47 0,4 0,60 1,07 1,53 0,10 0,15 0,20 CCGT09T302HP CCGT32505HP 7093320 - 9,67 0,2 0,60 1,45 2,30 0,05 0,05 0,10 CCGT09T304HP CCGT3251HP 7093779 7167023 9,67 0,4 0,60 1,45 2,30 0,10 0,15 0,20 CCGT09T308HP CCGT3252HP 7093357 7167024 9,67 0,8 0,60 1,45 2,30 0,20 0,30 0,40 CCGT120402HP CCGT4305HP 7093341 - 12,90 0,2 0,60 1,84 3,07 0,05 0,05 0,10 CCGT120404HP CCGT431HP 7093342 - 12,90 0,4 0,60 1,84 3,07 0,10 0,15 0,20 CCGT120408HP CCGT432HP 7093350 - 12,90 0,8 0,60 1,84 3,07 0,20 0,30 0,40 CPGT060202HP CPGT21505HP 7093351 - 6,45 0,2 0,60 1,07 1,53 0,05 0,05 0,10 CPGT060204HP CPGT2151HP 7093352 - 6,45 0,4 0,60 1,07 1,53 0,10 0,15 0,20 CPGT09T304HP CPGT3251HP 7093347 - 9,67 0,4 0,60 1,45 2,30 0,10 0,15 0,20 DCGT070202HP DCGT21505HP 7093353 7167035 7,75 0,2 0,60 1,22 1,84 0,05 0,05 0,10 DCGT070204HP DCGT2151HP 7093354 7167036 7,75 0,4 0,60 1,22 1,84 0,10 0,15 0,20 DCGT070208HP DCGT2152HP 7093355 - 7,75 0,8 0,60 1,22 1,84 0,20 0,30 0,40 DCGT11T302HP DCGT32505HP 7093815 7167038 11,63 0,2 0,60 1,69 2,77 0,05 0,05 0,10 DCGT11T304HP DCGT3251HP 7093816 7167039 11,59 0,4 0,60 1,69 2,77 0,10 0,15 0,20 DCGT11T308HP DCGT3252HP 7093348 7167040 11,63 0,8 0,60 1,69 2,77 0,20 0,30 0,40 TCGT110204HP TCGT2151HP - 7167048 11,00 0,4 0,60 1,61 2,62 0,10 0,15 0,20 TCGT110208HP TCGT2152HP 7093877 - 11,00 0,8 0,60 1,61 2,62 0,20 0,30 0,40 TCGT16T302HP TCGT32505HP - 7167050 16,50 0,2 0,60 2,26 3,92 0,05 0,05 0,10 TCGT16T304HP TCGT3251HP 7093874 - 16,50 0,4 0,60 2,26 3,92 0,10 0,15 0,20 TCGT16T308HP TCGT3252HP 7093116 - 16,50 0,8 0,60 2,26 3,92 0,20 0,30 0,40 VBGT110302HP VBGT2205HP 7093366 - 11,07 0,2 0,60 1,62 2,63 0,05 0,05 0,10 VBGT110304HP VBGT221HP 7093364 - 10,95 0,4 0,60 1,62 2,63 0,10 0,15 0,20 VBGT160404HP VBGT331HP 7093826 7167066 16,61 0,4 0,60 2,28 3,95 0,10 0,15 0,20 VBGT160408HP VBGT332HP 7093362 7167068 16,61 0,8 0,60 2,28 3,95 0,20 0,30 0,40 A37 kennametal.com
