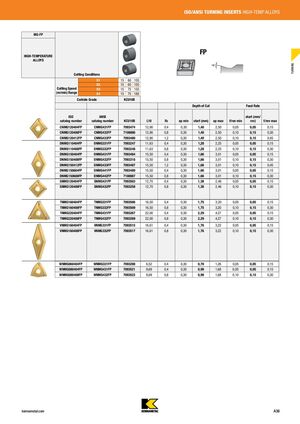

ISO/ANSI TURNING INSERTS HIGH-TEMP ALLOYS MG-FP HIGH-TEMPERATURE FP ALLOYS TURNING Cutting Conditions S1 15 60 155 S2 15 65 155 Cutting Speed S3 15 75 155 (m/min) Range S4 15 75 185 Carbide Grade KCU10B Depth of Cut Feed Rate ISO ANSI start (mm/ catalog number catalog number KCU10B L10 Rı ap min start (mm) ap max f/rev min rev) f/rev max CNMG120404FP CNMG431FP 7093474 12,90 0,4 0,30 1,40 2,50 0,05 0,05 0,15 CNMG120408FP CNMG432FP 7108886 12,90 0,8 0,30 1,40 2,50 0,10 0,15 0,30 CNMG120412FP CNMG433FP 7093480 12,90 1,2 0,30 1,40 2,50 0,10 0,15 0,45 DNMG110404FP DNMG331FP 7093247 11,63 0,4 0,30 1,28 2,25 0,05 0,05 0,15 DNMG110408FP DNMG332FP 7093248 11,63 0,8 0,30 1,28 2,25 0,10 0,15 0,30 DNMG150404FP DNMG431FP 7093484 15,50 0,4 0,30 1,66 3,01 0,05 0,05 0,15 DNMG150408FP DNMG432FP 7093318 15,50 0,8 0,30 1,66 3,01 0,10 0,15 0,30 DNMG150412FP DNMG433FP 7093487 15,50 1,2 0,30 1,66 3,01 0,10 0,15 0,45 DNMG150604FP DNMG441FP 7093489 15,50 0,4 0,30 1,66 3,01 0,05 0,05 0,15 DNMG150608FP DNMG442FP 7108887 15,50 0,8 0,30 1,66 3,01 0,10 0,15 0,30 SNMG120404FP SNMG431FP 7093503 12,70 0,4 0,30 1,38 2,46 0,05 0,05 0,15 SNMG120408FP SNMG432FP 7093258 12,70 0,8 0,30 1,38 2,46 0,10 0,15 0,30 TNMG160404FP TNMG331FP 7093506 16,50 0,4 0,30 1,75 3,20 0,05 0,05 0,15 TNMG160408FP TNMG332FP 7093509 16,50 0,8 0,30 1,75 3,20 0,10 0,15 0,30 TNMG220404FP TNMG431FP 7093267 22,00 0,4 0,30 2,29 4,27 0,05 0,05 0,15 TNMG220408FP TNMG432FP 7093269 22,00 0,8 0,30 2,29 4,27 0,10 0,15 0,30 VNMG160404FP VNMG331FP 7093515 16,61 0,4 0,30 1,76 3,22 0,05 0,05 0,15 VNMG160408FP VNMG332FP 7093517 16,61 0,8 0,30 1,76 3,22 0,10 0,15 0,30 WNMG060404FP WNMG331FP 7093288 6,52 0,4 0,30 0,78 1,26 0,05 0,05 0,15 WNMG080404FP WNMG431FP 7093521 8,69 0,4 0,30 0,99 1,68 0,05 0,05 0,15 WNMG080408FP WNMG432FP 7093522 8,69 0,8 0,30 0,99 1,68 0,10 0,15 0,30 kennametal.com A36
