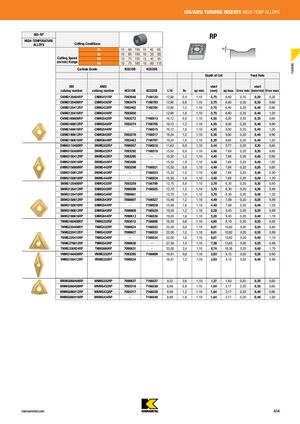

ISO/ANSI TURNING INSERTS HIGH-TEMP ALLOYS MG-RP HIGH-TEMPERATURE RP ALLOYS Cutting Conditions S1 15 60 155 10 45 65 S2 15 65 155 10 35 85 Cutting Speed S3 15 75 155 15 45 85 (m/min) Range S4 15 75 185 10 60 115 TURNING Carbide Grade KCU10B KCU25B Depth of Cut Feed Rate ISO ANSI start start catalog number catalog number KCU10B KCU25B L10 Rı ap min (mm) ap max f/rev min (mm/rev) f/rev max CNMG120404RP CNMG431RP 7093048 7166120 12,90 0,4 1,10 3,75 6,40 0,10 0,20 0,30 CNMG120408RP CNMG432RP 7093479 7166783 12,90 0,8 1,10 3,75 6,40 0,20 0,35 0,60 CNMG120412RP CNMG433RP 7093482 7166784 12,90 1,2 1,10 3,75 6,40 0,20 0,40 0,90 CNMG120416RP CNMG434RP 7093050 - 12,90 1,6 1,10 3,75 6,40 0,20 0,40 1,20 CNMG160608RP CNMG542RP 7093272 7166513 16,12 0,8 1,10 4,55 8,00 0,20 0,35 0,60 CNMG160612RP CNMG543RP 7093274 7166785 16,12 1,2 1,10 4,55 8,00 0,20 0,40 0,90 CNMG160616RP CNMG544RP - 7166515 16,12 1,6 1,10 4,55 8,00 0,20 0,40 1,20 CNMG190612RP CNMG643RP 7093278 7166517 19,34 1,2 1,10 5,35 9,60 0,20 0,40 0,90 CNMG190616RP CNMG644RP 7093483 7166787 19,34 1,6 1,10 5,35 9,60 0,20 0,40 1,20 DNMG110408RP DNMG332RP 7090557 7166518 11,63 0,8 1,10 3,44 5,77 0,20 0,35 0,60 DNMG150408RP DNMG432RP 7093292 7166519 15,50 0,8 1,10 4,40 7,69 0,20 0,35 0,60 DNMG150412RP DNMG433RP 7093295 - 15,50 1,2 1,10 4,40 7,69 0,20 0,40 0,90 DNMG150416RP DNMG434RP 7093488 - 15,50 1,6 1,10 4,40 7,69 0,20 0,40 1,20 DNMG150608RP DNMG442RP 7093299 7166521 15,50 0,8 1,10 4,40 7,69 0,20 0,35 0,60 DNMG150612RP DNMG443RP - 7166523 15,50 1,2 1,10 4,40 7,69 0,20 0,40 0,90 DNMG150616RP DNMG444RP - 7166524 15,50 1,6 1,10 4,40 7,69 0,20 0,40 1,20 SNMG120408RP SNMG432RP 7093259 7166790 12,70 0,8 1,10 3,70 6,30 0,20 0,35 0,60 SNMG120412RP SNMG433RP 7090599 7166525 12,70 1,2 1,10 3,70 6,30 0,20 0,35 0,89 SNMG120416RP SNMG434RP 7090601 - 12,70 1,6 1,10 3,70 6,30 0,20 0,40 1,20 SNMG150612RP SNMG543RP 7090607 7166527 15,88 1,2 1,10 4,49 7,88 0,20 0,35 0,89 SNMG150616RP SNMG544RP - 7166528 15,88 1,6 1,10 4,49 7,88 0,20 0,40 1,20 SNMG190612RP SNMG643RP 7090609 7166529 19,05 1,2 1,10 5,28 9,45 0,20 0,35 0,89 SNMG190616RP SNMG644RP 7090613 7166530 19,05 1,6 1,10 5,28 9,45 0,20 0,40 1,19 TNMG160408RP TNMG332RP 7093512 7166806 16,50 0,8 1,10 4,65 8,19 0,20 0,35 0,60 TNMG220408RP TNMG432RP 7090624 7166532 22,00 0,8 1,10 6,01 10,92 0,20 0,35 0,60 TNMG220412RP TNMG433RP 7090627 7166533 22,00 1,2 1,10 6,01 10,92 0,20 0,35 0,89 TNMG220416RP TNMG434RP - 7166534 22,00 1,6 1,10 6,01 10,92 0,20 0,40 1,19 TNMG270612RP TNMG543RP 7090630 - 27,50 1,2 1,10 7,38 13,65 0,20 0,35 0,89 TNMG330924RP TNMG666RP 7090631 - 33,00 2,4 1,10 8,74 16,38 0,20 0,40 1,79 VNMG160408RP VNMG332RP 7093285 7166809 16,61 0,8 1,10 2,63 4,15 0,20 0,35 0,60 VNMG160412RP VNMG333RP 7090634 - 16,61 1,2 1,10 2,63 4,15 0,20 0,40 0,90 WNMG060408RP WNMG332RP 7090637 7166537 6,52 0,8 1,10 1,37 1,63 0,20 0,35 0,60 WNMG080408RP WNMG432RP 7093316 7166538 8,69 0,8 1,10 1,64 2,17 0,20 0,35 0,60 WNMG080412RP WNMG433RP 7093317 7166539 8,69 1,2 1,10 1,64 2,17 0,20 0,40 0,90 WNMG080416RP WNMG434RP - 7166540 8,69 1,6 1,10 1,64 2,17 0,20 0,40 1,20 kennametal.com A34
