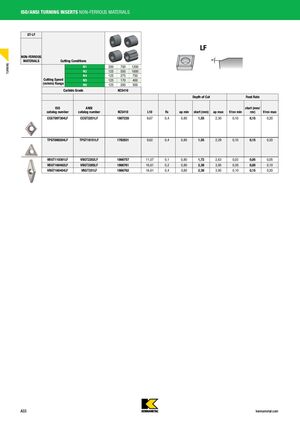

ISO/ANSI токарные пластины для цветных металлов
GT-LF
Условия резания
Диапазон скоростей резания (м/мин):
| N1 | 200 | 700 | 1200 |
| N2 | 125 | 550 | 1000 |
| N4 | 125 | 275 | 750 |
| N5 | 125 | 170 | 400 |
| N6 | 125 | 200 | 500 |
Марка карбида: KC5410
| Каталожный номер ISO | Каталожный номер ANSI | KC5410 | L10 | Rı | Мин. глубина (мм) | Глубина начальная (мм) | Макс. глубина (мм) | Подача мин (мм/об) | Подача начальная (мм/об) | Подача макс (мм/об) |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT09T304LF | CCGT3251LF | 1807220 | 9,67 | 0,4 | 0,80 | 1,55 | 2,30 | 0,10 | 0,15 | 0,20 |
| TPGT090204LF | TPGT18151LF | 1782831 | 9,62 | 0,4 | 0,80 | 1,55 | 2,29 | 0,10 | 0,15 | 0,20 |
| VBGT110301LF | VBGT2202LF | 1866757 | 11,07 | 0,1 | 0,80 | 1,72 | 2,63 | 0,03 | 0,05 | 0,05 |
| VBGT160402LF | VBGT3305LF | 1866761 | 16,61 | 0,2 | 0,80 | 2,38 | 3,95 | 0,05 | 0,05 | 0,10 |
| VBGT160404LF | VBGT331LF | 1866762 | 16,61 | 0,4 | 0,80 | 2,38 | 3,95 | 0,10 | 0,15 | 0,20 |
