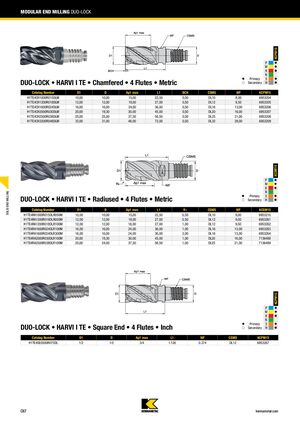

Модульное концевое фрезерование DUO-LOCK
DUO-LOCK • ХАРВИ I TE • Скошенный • 4 зубья • Метрическая
| Каталожный номер | D1 | D | Ap1 max | L1 | BCH | CSMS | WF | KCPM15 |
|---|---|---|---|---|---|---|---|---|
| H1TE4CH1000R015DLM | 10,00 | 10,00 | 15,00 | 22,50 | 0,50 | DL10 | 8,00 | 6953204 |
| H1TE4CH1200R018DLM | 12,00 | 12,00 | 18,00 | 27,00 | 0,50 | DL12 | 9,50 | 6953205 |
| H1TE4CH1600R024DLM | 16,00 | 16,00 | 24,00 | 36,00 | 0,50 | DL16 | 13,00 | 6953206 |
| H1TE4CH2000R030DLM | 20,00 | 19,30 | 30,00 | 45,00 | 0,50 | DL20 | 16,00 | 6953207 |
| H1TE4CH2500R038DLM | 25,00 | 25,00 | 37,50 | 56,50 | 0,50 | DL25 | 21,00 | 6953208 |
| H1TE4CH3200R048DLM | 32,00 | 31,00 | 48,00 | 72,00 | 0,50 | DL32 | 28,00 | 6953209 |
DUO-LOCK • ХАРВИ I TE • Радиусный • 4 зубья • Метрическая
| Каталожный номер | D1 | D | Ap1 max | L1 | RH | CSMS | WF | KCSM15 |
|---|---|---|---|---|---|---|---|---|
| H1TE4RA1000R015DLR050M | 10,00 | 10,00 | 15,00 | 22,50 | 0,50 | DL10 | 8,00 | 6953210 |
| H1TE4RA1200R018DLR050M | 12,00 | 12,00 | 18,00 | 27,00 | 0,50 | DL12 | 9,50 | 6953261 |
| H1TE4RA1200R018DLR100M | 12,00 | 12,00 | 18,00 | 27,00 | 1,00 | DL12 | 9,50 | 6953262 |
| H1TE4RA1600R024DLR100M | 16,00 | 16,00 | 24,00 | 36,00 | 1,00 | DL16 | 13,00 | 6953263 |
| H1TE4RA1600R024DLR300M | 16,00 | 16,00 | 24,00 | 36,00 | 3,00 | DL16 | 13,00 | 6953264 |
| H1TE4RA2000R030DLR100M | 20,00 | 19,30 | 30,00 | 45,00 | 1,00 | DL20 | 16,00 | 7136488 |
| H1TE4RA2500R038DLR100M | 25,00 | 24,00 | 37,50 | 56,50 | 1,00 | DL25 | 21,00 | 7136489 |
DUO-LOCK • ХАРВИ I TE • Квадратный конец • 4 зубья • Дюймовая
| Каталожный номер | D1 | D | Ap1 max | L1 | WF | CSMS | KCPM15 |
|---|---|---|---|---|---|---|---|
| H1TE4SE0500R075DL | 1/2 | 1/2 | 3/4 | 1,126 | 0,374 | DL12 | 6953267 |
