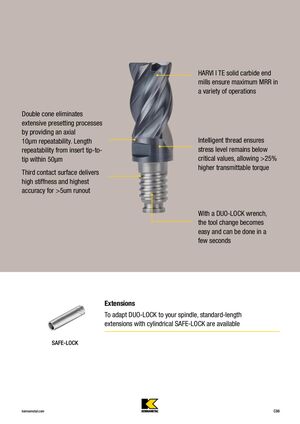

HARVI I TE solid carbide end mills ensure maximum MRR in a variety of operations Double cone eliminates extensive presetting processes by providing an axial 10μm repeatability. Length Intelligent thread ensures repeatability from insert tip-to- stress level remains below tip within 50μm critical values, allowing >25% higher transmittable torque Third contact surface delivers high stiffness and highest accuracy for >5um runout With a DUO-LOCK wrench, the tool change becomes easy and can be done in a few seconds Extensions To adapt DUO-LOCK to your spindle, standard-length extensions with cylindrical SAFE-LOCK are available SAFE-LOCK kennametal.com C86
