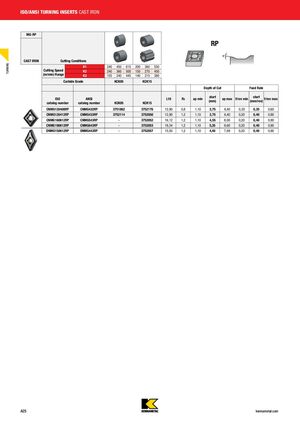

Пластины для точения ISO/ANSI из чугуна
MG-RP
Условия резания
| Скорость резания (м/мин) | KCK05 | KCK15 | ||||
|---|---|---|---|---|---|---|
| K1 | 240 | 450 | 615 | 200 | 360 | 550 |
| K2 | 240 | 360 | 500 | 150 | 270 | 450 |
| K3 | 155 | 240 | 445 | 140 | 215 | 380 |
| Каталог ISO | Каталог ANSI | KCK05 | KCK15 | L10 | Rı | ap мин (мм) | ap макс (мм) | Подача мин (мм/об) | Подача нач (мм/об) | Подача макс (мм/об) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CNMG120408RP | CNMG432RP | 3751862 | 3752176 | 12,90 | 0,8 | 1,10 | 3,75 | 6,40 | 0,20 | 0,35 | 0,60 |
| CNMG120412RP | CNMG433RP | 3752114 | 3752050 | 12,90 | 1,2 | 1,10 | 3,75 | 6,40 | 0,20 | 0,40 | 0,90 |
| CNMG160612RP | CNMG543RP | - | 3752052 | 16,12 | 1,2 | 1,10 | 4,55 | 8,00 | 0,20 | 0,40 | 0,90 |
| CNMG190612RP | CNMG643RP | - | 3752053 | 19,34 | 1,2 | 1,10 | 5,35 | 9,60 | 0,20 | 0,40 | 0,90 |
| DNMG150612RP | DNMG443RP | - | 3752057 | 15,50 | 1,2 | 1,10 | 4,40 | 7,69 | 0,20 | 0,40 | 0,90 |
