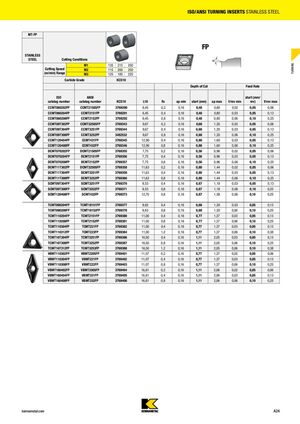

ISO/ANSI TURNING INSERTS STAINLESS STEEL MT-FP FP STAINLESS STEEL Cutting Conditions TURNING M1 135 215 250 Cutting Speed M2 115 200 250 (m/min) Range M3 125 185 225 Carbide Grade KCS10 Depth of Cut Feed Rate ISO ANSI start (mm/ catalog number catalog number KCS10 L10 Rı ap min start (mm) ap max f/rev min rev) f/rev max CCMT060202FP CCMT21505FP 3769290 6,45 0,2 0,16 0,48 0,80 0,02 0,05 0,06 CCMT060204FP CCMT2151FP 3769291 6,45 0,4 0,16 0,48 0,80 0,03 0,05 0,13 CCMT060208FP CCMT2152FP 3769292 6,45 0,8 0,16 0,48 0,80 0,06 0,10 0,25 CCMT09T302FP CCMT32505FP 3769343 9,67 0,2 0,16 0,68 1,20 0,02 0,05 0,06 CCMT09T304FP CCMT3251FP 3769344 9,67 0,4 0,16 0,68 1,20 0,03 0,05 0,13 CCMT09T308FP CCMT3252FP 3482532 9,67 0,8 0,16 0,68 1,20 0,06 0,10 0,25 CCMT120404FP CCMT431FP 3769345 12,90 0,4 0,16 0,88 1,60 0,03 0,05 0,13 CCMT120408FP CCMT432FP 3769346 12,90 0,8 0,16 0,88 1,60 0,06 0,10 0,25 DCMT070202FP DCMT21505FP 3769355 7,75 0,2 0,16 0,56 0,96 0,02 0,05 0,06 DCMT070204FP DCMT2151FP 3769356 7,75 0,4 0,16 0,56 0,96 0,03 0,05 0,13 DCMT070208FP DCMT2152FP 3769357 7,75 0,8 0,16 0,56 0,96 0,06 0,10 0,25 DCMT11T302FP DCMT32505FP 3769358 11,63 0,2 0,16 0,80 1,44 0,02 0,05 0,06 DCMT11T304FP DCMT3251FP 3769359 11,63 0,4 0,16 0,80 1,44 0,03 0,05 0,13 DCMT11T308FP DCMT3252FP 3769360 11,63 0,8 0,16 0,80 1,44 0,06 0,10 0,25 SCMT09T304FP SCMT3251FP 3769370 9,53 0,4 0,16 0,67 1,18 0,03 0,05 0,13 SCMT09T308FP SCMT3252FP 3769371 9,53 0,8 0,16 0,67 1,18 0,06 0,10 0,25 SCMT120408FP SCMT432FP 3769373 12,70 0,8 0,16 0,87 1,58 0,06 0,10 0,25 TCMT090204FP TCMT18151FP 3769377 9,62 0,4 0,16 0,68 1,20 0,03 0,05 0,13 TCMT090208FP TCMT18152FP 3769378 9,63 0,8 0,16 0,68 1,20 0,06 0,10 0,25 TCMT110204FP TCMT2151FP 3769380 11,00 0,4 0,16 0,77 1,37 0,03 0,05 0,13 TCMT110208FP TCMT2152FP 3769381 11,00 0,8 0,16 0,77 1,37 0,06 0,10 0,25 TCMT110304FP TCMT221FP 3769382 11,00 0,4 0,16 0,77 1,37 0,03 0,05 0,13 TCMT110312FP TCMT223FP 3769384 11,00 1,2 0,16 0,77 1,37 0,06 0,10 0,38 TCMT16T304FP TCMT3251FP 3769386 16,50 0,4 0,16 1,11 2,05 0,03 0,05 0,13 TCMT16T308FP TCMT3252FP 3769387 16,50 0,8 0,16 1,11 2,05 0,06 0,10 0,25 TCMT16T312FP TCMT3253FP 3769388 16,50 1,2 0,16 1,11 2,05 0,06 0,10 0,38 VBMT110302FP VBMT2205FP 3769401 11,07 0,2 0,16 0,77 1,37 0,02 0,05 0,06 VBMT110304FP VBMT221FP 3769402 11,07 0,4 0,16 0,77 1,37 0,03 0,05 0,13 VBMT110308FP VBMT222FP 3769403 11,07 0,8 0,16 0,77 1,37 0,06 0,10 0,25 VBMT160402FP VBMT3305FP 3769404 16,61 0,2 0,16 1,11 2,06 0,02 0,05 0,06 VBMT160404FP VBMT331FP 3769405 16,61 0,4 0,16 1,11 2,06 0,03 0,05 0,13 VBMT160408FP VBMT332FP 3769406 16,61 0,8 0,16 1,11 2,06 0,06 0,10 0,25 kennametal.com A24
