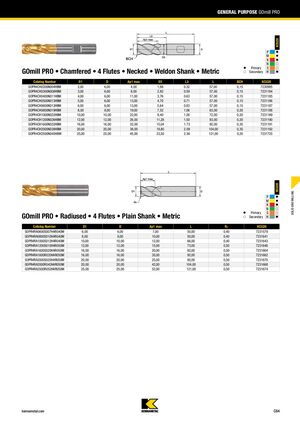

Общее назначение GOmill PRO
GOmill PRO • Фасковая • 4 зуба • С укороченной шейкой • Хвостовик Weldon • Метрический
| Артикул | D1 | D | Ap1 макс. | D3 | L3 | L | BCH | KCU20 |
|---|---|---|---|---|---|---|---|---|
| GOPR4CH0200N004HBM | 2,00 | 6,00 | 4,00 | 1,88 | 0,32 | 57,00 | 0,15 | 7230995 |
| GOPR4CH0300N008HBM | 3,00 | 6,00 | 8,00 | 2,82 | 0,59 | 57,00 | 0,15 | 7231184 |
| GOPR4CH0400N011HBM | 4,00 | 6,00 | 11,00 | 3,76 | 0,63 | 57,00 | 0,15 | 7231185 |
| GOPR4CH0500N013HBM | 5,00 | 6,00 | 13,00 | 4,70 | 0,71 | 57,00 | 0,15 | 7231186 |
| GOPR4CH0600N013HBM | 6,00 | 6,00 | 13,00 | 5,64 | 0,83 | 57,00 | 0,15 | 7231187 |
| GOPR4CH0800N019HBM | 8,00 | 8,00 | 19,00 | 7,52 | 1,06 | 63,00 | 0,20 | 7231188 |
| GOPR4CH1000N022HBM | 10,00 | 10,00 | 22,00 | 9,40 | 1,26 | 72,00 | 0,20 | 7231189 |
| GOPR4CH1200N026HBM | 12,00 | 12,00 | 26,00 | 11,28 | 1,50 | 83,00 | 0,20 | 7231190 |
| GOPR4CH1600N032HBM | 16,00 | 16,00 | 32,00 | 15,04 | 1,73 | 92,00 | 0,35 | 7231191 |
| GOPR4CH2000N038HBM | 20,00 | 20,00 | 38,00 | 18,80 | 2,09 | 104,00 | 0,35 | 7231192 |
| GOPR4CH2500N045HBM | 25,00 | 25,00 | 45,00 | 23,50 | 2,56 | 121,00 | 0,35 | 7231725 |
GOmill PRO • Радиусная • 4 зуба • Цилиндрический хвостовик • Метрический
| Артикул | D1 | D | Ap1 макс. | L | RH | KCU20 |
|---|---|---|---|---|---|---|
| GOPR4RA0600S007HAR040M | 6,00 | 6,00 | 7,00 | 50,00 | 0,40 | 7231579 |
| GOPR4RA0800S010HAR040M | 8,00 | 8,00 | 10,00 | 50,00 | 0,40 | 7231641 |
| GOPR4RA1000S012HAR040M | 10,00 | 10,00 | 12,00 | 66,00 | 0,40 | 7231643 |
| GOPR4RA1200S015HAR050M | 12,00 | 12,00 | 15,00 | 73,00 | 0,50 | 7231646 |
| GOPR4RA1600S020HAR050M | 16,00 | 16,00 | 20,00 | 82,00 | 0,50 | 7231664 |
| GOPR4RA1600R035HAR050M | 16,00 | 16,00 | 35,00 | 92,00 | 0,50 | 7231662 |
| GOPR4RA2000S025HAR050M | 20,00 | 20,00 | 25,00 | 92,00 | 0,50 | 7231670 |
| GOPR4RA2000R042HAR050M | 20,00 | 20,00 | 42,00 | 104,00 | 0,50 | 7231668 |
| GOPR4RA2500R052HAR050M | 25,00 | 25,00 | 52,00 | 121,00 | 0,50 | 7231674 |
GOmill PRO • Радиусная • 4 зуба • Хвостовик Weldon • Метрический
| Артикул | D1 | D | Ap1 макс. | L | RH | KCU20 |
|---|---|---|---|---|---|---|
| GOPR4RA0600S007HBR040M | 6,00 | 6,00 | 7,00 | 50,00 | 0,40 | 7231580 |
| GOPR4RA0800S010HBR040M | 8,00 | 8,00 | 10,00 | 50,00 | 0,40 | 7231642 |
| GOPR4RA1000S012HBR040M | 10,00 | 10,00 | 12,00 | 66,00 | 0,40 | 7231644 |
| GOPR4RA1200S015HBR050M | 12,00 | 12,00 | 15,00 | 73,00 | 0,50 | 7231647 |
| GOPR4RA1600S020HBR050M | 16,00 | 16,00 | 20,00 | 82,00 | 0,50 | 7231665 |
| GOPR4RA1600R035HBR050M | 16,00 | 16,00 | 35,00 | 92,00 | 0,50 | 7231663 |
| GOPR4RA2000S025HBR050M | 20,00 | 20,00 | 25,00 | 92,00 | 0,50 | 7231671 |
| GOPR4RA2000R042HBR050M | 20,00 | 20,00 | 42,00 | 104,00 | 0,50 | 7231669 |
| GOPR4RA2500R052HBR050M | 25,00 | 25,00 | 52,00 | 121,00 | 0,50 | 7231675 |
