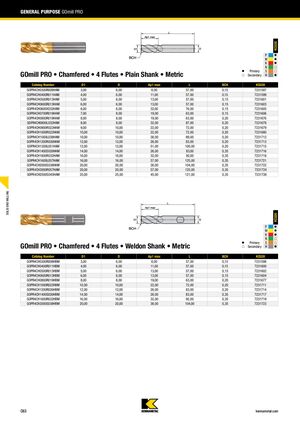

Общее назначение GOmill PRO
GOmill PRO • Фасковая • 4 зуба • Цилиндрический хвостовик • Метрический
| Артикул | D1 | D | Ap1 макс. | L | BCH | KCU20 |
|---|---|---|---|---|---|---|
| GOPR4CH0300R008HAM | 3,00 | 6,00 | 8,00 | 57,00 | 0,15 | 7231597 |
| GOPR4CH0400R011HAM | 4,00 | 6,00 | 11,00 | 57,00 | 0,15 | 7231599 |
| GOPR4CH0500R013HAM | 5,00 | 6,00 | 13,00 | 57,00 | 0,15 | 7231601 |
| GOPR4CH0600R013HAM | 6,00 | 6,00 | 13,00 | 57,00 | 0,15 | 7231603 |
| GOPR4CH0600X032HAM | 6,00 | 6,00 | 32,00 | 76,00 | 0,15 | 7231605 |
| GOPR4CH0700R019HAM | 7,00 | 8,00 | 19,00 | 63,00 | 0,15 | 7231606 |
| GOPR4CH0800R019HAM | 8,00 | 8,00 | 19,00 | 63,00 | 0,20 | 7231676 |
| GOPR4CH0800L032HAM | 8,00 | 8,00 | 32,00 | 87,00 | 0,20 | 7231678 |
| GOPR4CH0900R022HAM | 9,00 | 10,00 | 22,00 | 72,00 | 0,20 | 7231679 |
| GOPR4CH1000R022HAM | 10,00 | 10,00 | 22,00 | 72,00 | 0,20 | 7231680 |
| GOPR4CH1000L038HAM | 10,00 | 10,00 | 38,00 | 89,00 | 0,20 | 7231712 |
| GOPR4CH1200R026HAM | 12,00 | 12,00 | 26,00 | 83,00 | 0,20 | 7231713 |
| GOPR4CH1200L051HAM | 12,00 | 12,00 | 51,00 | 100,00 | 0,20 | 7231715 |
| GOPR4CH1400S026HAM | 14,00 | 14,00 | 26,00 | 83,00 | 0,35 | 7231716 |
| GOPR4CH1600R032HAM | 16,00 | 16,00 | 32,00 | 92,00 | 0,35 | 7231718 |
| GOPR4CH1600L057HAM | 16,00 | 16,00 | 57,00 | 125,00 | 0,35 | 7231721 |
| GOPR4CH2000S038HAM | 20,00 | 20,00 | 38,00 | 104,00 | 0,35 | 7231722 |
| GOPR4CH2000R057HAM | 20,00 | 20,00 | 57,00 | 125,00 | 0,35 | 7231724 |
| GOPR4CH2500S045HAM | 25,00 | 25,00 | 45,00 | 121,00 | 0,35 | 7231726 |
GOmill PRO • Фасковая • 4 зуба • Хвостовик Weldon • Метрический
| Артикул | D1 | D | Ap1 макс. | L | BCH | KCU20 |
|---|---|---|---|---|---|---|
| GOPR4CH0300R008HBM | 3,00 | 6,00 | 8,00 | 57,00 | 0,15 | 7231598 |
| GOPR4CH0400R011HBM | 4,00 | 6,00 | 11,00 | 57,00 | 0,15 | 7231600 |
| GOPR4CH0500R013HBM | 5,00 | 6,00 | 13,00 | 57,00 | 0,15 | 7231602 |
| GOPR4CH0600R013HBM | 6,00 | 6,00 | 13,00 | 57,00 | 0,15 | 7231604 |
| GOPR4CH0800R019HBM | 8,00 | 8,00 | 19,00 | 63,00 | 0,20 | 7231677 |
| GOPR4CH1000R022HBM | 10,00 | 10,00 | 22,00 | 72,00 | 0,20 | 7231711 |
| GOPR4CH1200R026HBM | 12,00 | 12,00 | 26,00 | 83,00 | 0,20 | 7231714 |
| GOPR4CH1400S026HBM | 14,00 | 14,00 | 26,00 | 83,00 | 0,35 | 7231717 |
| GOPR4CH1600R032HBM | 16,00 | 16,00 | 32,00 | 92,00 | 0,35 | 7231719 |
| GOPR4CH2000S038HBM | 20,00 | 20,00 | 38,00 | 104,00 | 0,35 | 7231723 |
