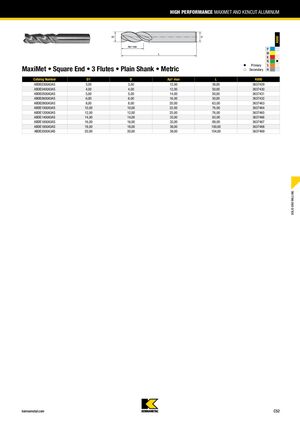

Высокопроизводительные MaxiMet и KenCut для алюминия
MaxiMet • Торцевая фреза с квадратным концом • 3 зуба • Цилиндрический хвостовик • Метрический
| Артикул | D1 | D | Ap1 макс. | L | K600 |
|---|---|---|---|---|---|
| ABDE0300A3AS | 3,00 | 3,00 | 12,00 | 38,00 | 3637429 |
| ABDE0400A3AS | 4,00 | 4,00 | 12,00 | 50,00 | 3637430 |
| ABDE0500A3AS | 5,00 | 5,00 | 14,00 | 50,00 | 3637431 |
| ABDE0600A3AS | 6,00 | 6,00 | 16,00 | 50,00 | 3637432 |
| ABDE0800A3AS | 8,00 | 8,00 | 20,00 | 63,00 | 3637463 |
| ABDE1000A3AS | 10,00 | 10,00 | 22,00 | 76,00 | 3637464 |
| ABDE1200A3AS | 12,00 | 12,00 | 25,00 | 76,00 | 3637465 |
| ABDE1400A3AS | 14,00 | 14,00 | 32,00 | 83,00 | 3637466 |
| ABDE1600A3AS | 16,00 | 16,00 | 32,00 | 89,00 | 3637467 |
| ABDE1800A3AS | 18,00 | 18,00 | 38,00 | 100,00 | 3637468 |
| ABDE2000A3AS | 20,00 | 20,00 | 38,00 | 104,00 | 3637469 |
