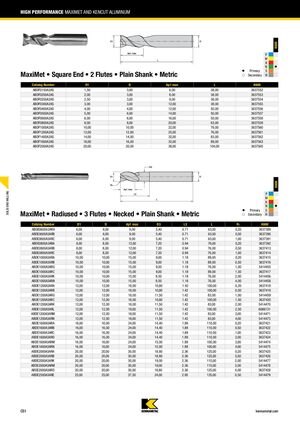

ВЫСОКОПРОИЗВОДИТЕЛЬНЫЕ ФРЕЗЫ MAXIMET И KENCUT ДЛЯ АЛЮМИНИЯ
MaxiMet • Квадратный конец • 2 зуба • Цилиндрический хвостовик • Метрическая система
| Артикул | D1 | D | Ap1 макс | L | K600 |
|---|---|---|---|---|---|
| ABDF0150A2AS | 1,50 | 3,00 | 6,00 | 38,00 | 3637552 |
| ABDF0200A2AS | 2,00 | 3,00 | 8,00 | 38,00 | 3637553 |
| ABDF0250A2AS | 2,50 | 3,00 | 9,00 | 38,00 | 3637554 |
| ABDF0300A2AS | 3,00 | 3,00 | 12,00 | 38,00 | 3637555 |
| ABDF0400A2AS | 4,00 | 4,00 | 12,00 | 50,00 | 3637556 |
| ABDF0500A2AS | 5,00 | 6,00 | 14,00 | 50,00 | 3637557 |
| ABDF0600A2AS | 6,00 | 6,00 | 16,00 | 50,00 | 3637558 |
| ABDF0800A2AS | 8,00 | 8,00 | 20,00 | 63,00 | 3637559 |
| ABDF1000A2AS | 10,00 | 10,00 | 22,00 | 76,00 | 3637560 |
| ABDF1200A2AS | 12,00 | 12,00 | 25,00 | 76,00 | 3637561 |
| ABDF1400A2AS | 14,00 | 14,00 | 32,00 | 83,00 | 3637562 |
| ABDF1600A2AS | 16,00 | 16,00 | 32,00 | 89,00 | 3637563 |
| ABDF2000A2AS | 20,00 | 20,00 | 38,00 | 104,00 | 3637565 |
MaxiMet • Скругленный край • 3 зуба • С подточкой • Цилиндрический хвостовик • Метрическая система
| Артикул | D1 | D | Ap1 макс | D3 | L3 | L | RH | K600 |
|---|---|---|---|---|---|---|---|---|
| ABDE0600A3ARA | 6,00 | 6,00 | 9,00 | 5,40 | 0,71 | 63,00 | 0,20 | 3637389 |
| ABDE0600A3ARB | 6,00 | 6,00 | 9,00 | 5,40 | 0,71 | 63,00 | 0,50 | 3637390 |
| ABDE0600A3ARC | 6,00 | 6,00 | 9,00 | 5,40 | 0,71 | 63,00 | 1,00 | 3637391 |
| ABDE0800A3ARA | 8,00 | 8,00 | 12,00 | 7,20 | 0,94 | 76,00 | 0,20 | 3637392 |
| ABDE0800A3ARB | 8,00 | 8,00 | 12,00 | 7,20 | 0,94 | 76,00 | 0,50 | 3637413 |
| ABDE0800A3ARC | 8,00 | 8,00 | 12,00 | 7,20 | 0,94 | 76,00 | 1,00 | 3637414 |
| ABDE1000A3ARA | 10,00 | 10,00 | 15,00 | 9,00 | 1,18 | 89,00 | 0,20 | 3637415 |
| ABDE1000A3ARB | 10,00 | 10,00 | 15,00 | 9,00 | 1,18 | 89,00 | 0,50 | 3637416 |
| ABDE1000A3ARG | 10,00 | 10,00 | 15,00 | 9,50 | 1,18 | 76,00 | 1,00 | 5414455 |
| ABDE1000A3ARC | 10,00 | 10,00 | 15,00 | 9,00 | 1,18 | 89,00 | 1,50 | 3637417 |
| ABDE1000A3ARK | 10,00 | 10,00 | 15,00 | 9,50 | 1,18 | 76,00 | 2,00 | 5414456 |
| ABDE1000A3ARN | 10,00 | 10,00 | 15,00 | 9,50 | 1,18 | 76,00 | 4,00 | 5414458 |
| ABDE1200A3ARA | 12,00 | 12,00 | 18,00 | 10,80 | 1,42 | 100,00 | 0,20 | 3637418 |
| ABDE1200A3ARB | 12,00 | 12,00 | 18,00 | 10,80 | 1,42 | 100,00 | 0,50 | 3637419 |
| ABDE1200A3ARG | 12,00 | 12,00 | 18,00 | 11,50 | 1,42 | 83,00 | 1,00 | 5414459 |
| ABDE1200A3ARC | 12,00 | 12,00 | 18,00 | 10,80 | 1,42 | 100,00 | 1,50 | 3637420 |
| ABDE1200A3ARK | 12,00 | 12,00 | 18,00 | 11,50 | 1,42 | 83,00 | 2,00 | 5414470 |
| ABDE1200A3ARL | 12,00 | 12,00 | 18,00 | 11,50 | 1,42 | 100,00 | 2,50 | 6066131 |
| ABDE1200A3ARM | 12,00 | 12,00 | 18,00 | 11,50 | 1,42 | 83,00 | 3,00 | 5414471 |
| ABDE1200A3ARN | 12,00 | 12,00 | 18,00 | 11,50 | 1,42 | 83,00 | 4,00 | 5414473 |
| ABDE1600A3ARA | 16,00 | 16,00 | 24,00 | 14,40 | 1,89 | 110,00 | 0,20 | 3637421 |
| ABDE1600A3ARB | 16,00 | 16,00 | 24,00 | 14,40 | 1,89 | 110,00 | 0,50 | 3637422 |
| ABDE1600A3ARC | 16,00 | 16,00 | 24,00 | 14,40 | 1,89 | 110,00 | 1,00 | 3637423 |
| ABDE1600A3ARD | 16,00 | 16,00 | 24,00 | 14,40 | 1,89 | 110,00 | 2,00 | 3637424 |
| ABDE1600A3ARM | 16,00 | 16,00 | 24,00 | 15,00 | 1,89 | 100,00 | 3,00 | 5414474 |
| ABDE1600A3ARN | 16,00 | 16,00 | 24,00 | 15,00 | 1,89 | 100,00 | 4,00 | 5414475 |
| ABDE2000A3ARA | 20,00 | 20,00 | 30,00 | 18,80 | 2,36 | 125,00 | 0,20 | 3637425 |
| ABDE2000A3ARB | 20,00 | 20,00 | 30,00 | 18,80 | 2,36 | 125,00 | 0,50 | 3637426 |
| ABDE2000A3ARK | 20,00 | 20,00 | 30,00 | 19,00 | 2,36 | 115,00 | 2,00 | 5414477 |
| ABDE2000A3ARM | 20,00 | 20,00 | 30,00 | 19,00 | 2,36 | 115,00 | 3,00 | 5414478 |
| ABDE2000A3ARD | 20,00 | 20,00 | 30,00 | 18,80 | 2,36 | 125,00 | 4,00 | 3637428 |
| ABDE2500A3ARE | 25,00 | 25,00 | 37,50 | 24,00 | 2,95 | 135,00 | 0,50 | 5414479 |
