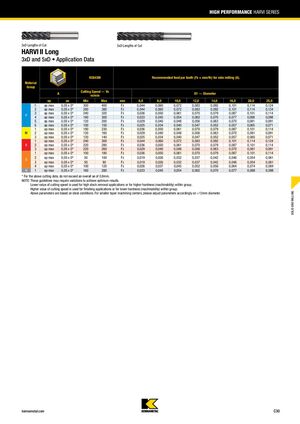

HIGH PERFORMANCE HARVI SERIES 3xD Lengths of Cut 5xD Lengths of Cut HARVI II Long 3xD and 5xD • Application Data KC643M Recommended feed per tooth (Fz = mm/th) for side milling (A). Material Group Cutting Speed — Vc A D1 — Diameter m/min ap ae Min Max mm 6,0 8,0 10,0 12,0 14,0 16,0 20,0 25,0 1 ap max 0,05 x D* 300 400 Fz 0,044 0,060 0,072 0,083 0,092 0,101 0,114 0,124 2 ap max 0,05 x D* 280 380 Fz 0,044 0,060 0,072 0,083 0,092 0,101 0,114 0,124 3 ap max 0,05 x D* 240 320 Fz 0,036 0,050 0,061 0,070 0,079 0,087 0,101 0,114 P 4 ap max 0,05 x D* 180 300 Fz 0,033 0,045 0,054 0,062 0,070 0,077 0,088 0,098 5 ap max 0,05 x D* 120 200 Fz 0,029 0,040 0,048 0,056 0,063 0,070 0,081 0,091 6 ap max 0,05 x D* 100 150 Fz 0,025 0,034 0,040 0,047 0,052 0,057 0,065 0,071 1 ap max 0,05 x D* 180 230 Fz 0,036 0,050 0,061 0,070 0,079 0,087 0,101 0,114 M 2 ap max 0,05 x D* 120 160 Fz 0,029 0,040 0,048 0,056 0,063 0,070 0,081 0,091 3 ap max 0,05 x D* 120 140 Fz 0,025 0,034 0,040 0,047 0,052 0,057 0,065 0,071 1 ap max 0,05 x D* 240 300 Fz 0,044 0,060 0,072 0,083 0,092 0,101 0,114 0,124 K 2 ap max 0,05 x D* 220 280 Fz 0,036 0,050 0,061 0,070 0,079 0,087 0,101 0,114 3 ap max 0,05 x D* 220 260 Fz 0,029 0,040 0,048 0,056 0,063 0,070 0,081 0,091 1 ap max 0,05 x D* 100 180 Fz 0,036 0,050 0,061 0,070 0,079 0,087 0,101 0,114 2 ap max 0,05 x D* 50 100 Fz 0,019 0,026 0,032 0,037 0,042 0,046 0,054 0,061 S 3 ap max 0,05 x D* 50 80 Fz 0,019 0,026 0,032 0,037 0,042 0,046 0,054 0,061 4 ap max 0,05 x D* 100 120 Fz 0,026 0,037 0,045 0,052 0,058 0,064 0,074 0,084 H 1 ap max 0,05 x D* 160 280 Fz 0,033 0,045 0,054 0,062 0,070 0,077 0,088 0,098 * For the above cutting data, do not exceed an overall ae of 0,8mm. NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. SOLID END MILLING Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. kennametal.com C30
