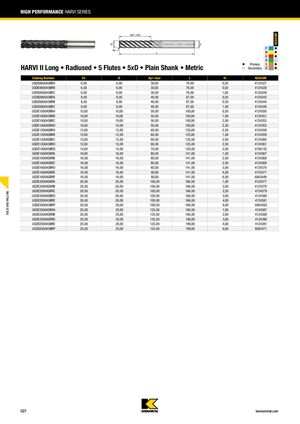

HIGH PERFORMANCE HARVI SERIES KC643M Ap1 max D1 D P 䢇 Rε L M 䢇 K 䢇 N 嘷 䢇 Primary S 䢇 HARVI II Long • Radiused • 5 Flutes • 5xD • Plain Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max L RH KC643M UGDE0600A5BRA 6,00 6,00 30,00 76,00 0,20 4124327 UGDE0600A5BRB 6,00 6,00 30,00 76,00 0,50 4124328 UGDE0600A5BRC 6,00 6,00 30,00 76,00 1,00 4124329 UGDE0800A5BRA 8,00 8,00 40,00 87,00 0,20 4124343 UGDE0800A5BRB 8,00 8,00 40,00 87,00 0,50 4124344 UGDE0800A5BRC 8,00 8,00 40,00 87,00 1,00 4124345 UGDE1000A5BRA 10,00 10,00 50,00 100,00 0,50 4124350 UGDE1000A5BRB 10,00 10,00 50,00 100,00 1,00 4124351 UGDE1000A5BRC 10,00 10,00 50,00 100,00 2,00 4124352 UGDE1000A5BRD 10,00 10,00 50,00 100,00 2,50 4124353 UGDE1200A5BRA 12,00 12,00 60,00 125,00 0,50 4124358 UGDE1200A5BRB 12,00 12,00 60,00 125,00 1,00 4124359 UGDE1200A5BRC 12,00 12,00 60,00 125,00 2,00 4124360 UGDE1200A5BRD 12,00 12,00 60,00 125,00 2,50 4124361 UGDE1400A5BRD 14,00 14,00 70,00 120,00 3,00 4156132 UGDE1600A5BRA 16,00 16,00 80,00 141,00 1,00 4124367 UGDE1600A5BRB 16,00 16,00 80,00 141,00 2,00 4124368 UGDE1600A5BRC 16,00 16,00 80,00 141,00 2,50 4124369 UGDE1600A5BRD 16,00 16,00 80,00 141,00 3,00 4124370 UGDE1600A5BRE 16,00 16,00 80,00 141,00 4,00 4124371 UGDE1600A5BRP 16,00 16,00 80,00 141,00 6,00 6063449 UGDE2000A5BRA 20,00 20,00 100,00 166,00 1,00 4124377 UGDE2000A5BRB 20,00 20,00 100,00 166,00 2,00 4124378 UGDE2000A5BRC 20,00 20,00 100,00 166,00 2,50 4124379 SOLID END MILLING UGDE2000A5BRD 20,00 20,00 100,00 166,00 3,00 4124380 UGDE2000A5BRE 20,00 20,00 100,00 166,00 4,00 4124381 UGDE2000A5BRP 20,00 20,00 100,00 166,00 6,00 6063450 UGDE2500A5BRA 25,00 25,00 125,00 190,00 1,00 4124387 UGDE2500A5BRB 25,00 25,00 125,00 190,00 2,00 4124388 UGDE2500A5BRD 25,00 25,00 125,00 190,00 3,00 4124390 UGDE2500A5BRE 25,00 25,00 125,00 190,00 4,00 4124391 UGDE2500A5BRP 25,00 25,00 125,00 190,00 6,00 6063471 C27 kennametal.com
