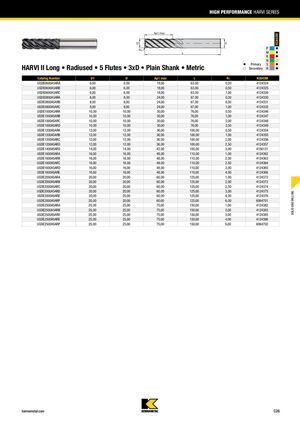

HIGH PERFORMANCE HARVI SERIES Ap1 max KC643M D1 D P 䢇 Rε L M 䢇 K 䢇 N 嘷 䢇 Primary S 䢇 HARVI II Long • Radiused • 5 Flutes • 3xD • Plain Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max L RH KC643M UGDE0600A5ARA 6,00 6,00 18,00 63,00 0,20 4124324 UGDE0600A5ARB 6,00 6,00 18,00 63,00 0,50 4124325 UGDE0600A5ARC 6,00 6,00 18,00 63,00 1,00 4124326 UGDE0800A5ARA 8,00 8,00 24,00 67,00 0,20 4124330 UGDE0800A5ARB 8,00 8,00 24,00 67,00 0,50 4124331 UGDE0800A5ARC 8,00 8,00 24,00 67,00 1,00 4124332 UGDE1000A5ARA 10,00 10,00 30,00 76,00 0,50 4124346 UGDE1000A5ARB 10,00 10,00 30,00 76,00 1,00 4124347 UGDE1000A5ARC 10,00 10,00 30,00 76,00 2,00 4124348 UGDE1000A5ARD 10,00 10,00 30,00 76,00 2,50 4124349 UGDE1200A5ARA 12,00 12,00 36,00 100,00 0,50 4124354 UGDE1200A5ARB 12,00 12,00 36,00 100,00 1,00 4124355 UGDE1200A5ARC 12,00 12,00 36,00 100,00 2,00 4124356 UGDE1200A5ARD 12,00 12,00 36,00 100,00 2,50 4124357 UGDE1400A5ARD 14,00 14,00 42,00 100,00 3,00 4156131 UGDE1600A5ARA 16,00 16,00 48,00 110,00 1,00 4124362 UGDE1600A5ARB 16,00 16,00 48,00 110,00 2,00 4124363 UGDE1600A5ARC 16,00 16,00 48,00 110,00 2,50 4124364 UGDE1600A5ARD 16,00 16,00 48,00 110,00 3,00 4124365 UGDE1600A5ARE 16,00 16,00 48,00 110,00 4,00 4124366 UGDE2000A5ARA 20,00 20,00 60,00 125,00 1,00 4124372 UGDE2000A5ARB 20,00 20,00 60,00 125,00 2,00 4124373 UGDE2000A5ARC 20,00 20,00 60,00 125,00 2,50 4124374 UGDE2000A5ARD 20,00 20,00 60,00 125,00 3,00 4124375 SOLID END MILLING UGDE2000A5ARE 20,00 20,00 60,00 125,00 4,00 4124376 UGDE2000A5ARP 20,00 20,00 60,00 125,00 6,00 6064701 UGDE2500A5ARA 25,00 25,00 75,00 150,00 1,00 4124382 UGDE2500A5ARB 25,00 25,00 75,00 150,00 2,00 4124383 UGDE2500A5ARD 25,00 25,00 75,00 150,00 3,00 4124385 UGDE2500A5ARE 25,00 25,00 75,00 150,00 4,00 4124386 UGDE2500A5ARP 25,00 25,00 75,00 150,00 6,00 6064702 kennametal.com C26
