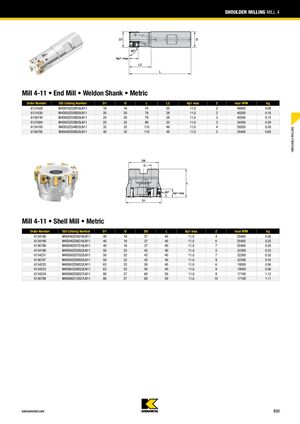

SHOULDER MILLING MILL 4 Mill 4-11 • End Mill • Weldon Shank • Metric Order Number ISO Catalog Number D1 D L L2 Ap1 max Z max RPM kg 6131628 M4D016Z02B16LN11 16 16 74 25 11,0 2 48000 0.09 6131630 M4D020Z02B20LN11 20 20 79 28 11,0 2 40200 0.16 6136740 M4D020Z03B20LN11 20 20 79 28 11,0 3 40200 0.15 6131684 M4D025Z03B25LN11 25 25 89 32 11,0 3 34300 0.29 6134185 M4D032Z04B32LN11 32 32 110 49 11,0 4 29200 0.59 INDEXABLE MILLING 6136795 M4D040Z05B32LN11 40 32 110 49 11,0 5 25400 0.65 Mill 4-11 • Shell Mill • Metric Order Number ISO Catalog Number D1 D D6 L Ap1 max Z max RPM kg 6134188 M4D040Z04S16LN11 40 16 37 40 11,0 4 25400 0.26 6134189 M4D040Z06S16LN11 40 16 37 40 11,0 6 25400 0.25 6136796 M4D040Z07S16LN11 40 16 37 40 11,0 7 25400 0.25 6134190 M4D050Z05S22LN11 50 22 42 40 11,0 5 22300 0.33 6134231 M4D050Z07S22LN11 50 22 42 40 11,0 7 22300 0.32 6136797 M4D050Z09S22LN11 50 22 42 40 11,0 9 22300 0.34 6134232 M4D063Z06S22LN11 63 22 50 40 11,0 6 19500 0.56 6134233 M4D063Z09S22LN11 63 22 50 40 11,0 9 19500 0.56 6134234 M4D080Z08S27LN11 80 27 60 50 11,0 8 17100 1.12 6136798 M4D080Z10S27LN11 80 27 60 50 11,0 10 17100 1.11 kennametal.com B32
