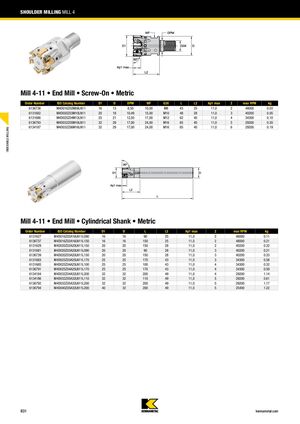

SHOULDER MILLING MILL 4 Mill 4-11 • End Mill • Screw-On • Metric Order Number ISO Catalog Number D1 D DPM WF G3X L L2 Ap1 max Z max RPM kg 6136738 M4D016Z02M08LN11 16 13 8,50 10,00 M8 43 25 11,0 2 48000 0.03 6131682 M4D020Z03M10LN11 20 18 10,49 15,00 M10 48 28 11,0 3 40200 0.05 6131686 M4D025Z04M12LN11 25 21 12,50 17,00 M12 62 40 11,0 4 34300 0.10 6136793 M4D032Z05M16LN11 32 29 17,00 24,00 M16 65 40 11,0 5 29200 0.20 6134187 M4D032Z06M16LN11 32 29 17,00 24,00 M16 65 40 11,0 6 29200 0.19 INDEXABLE MILLING Mill 4-11 • End Mill • Cylindrical Shank • Metric Order Number ISO Catalog Number D1 D L L2 Ap1 max Z max RPM kg 6131627 M4D016Z02A16LN11L090 16 16 90 25 11,0 2 48000 0.11 6136737 M4D016Z02A16LN11L150 16 16 150 25 11,0 2 48000 0.21 6131629 M4D020Z02A20LN11L150 20 20 150 28 11,0 2 40200 0.32 6131681 M4D020Z03A20LN11L090 20 20 90 28 11,0 3 40200 0.21 6136739 M4D020Z03A20LN11L150 20 20 150 28 11,0 3 40200 0.33 6131683 M4D025Z03A25LN11L170 25 25 170 43 11,0 3 34300 0.58 6131685 M4D025Z04A25LN11L100 25 25 100 43 11,0 4 34300 0.32 6136791 M4D025Z04A25LN11L170 25 25 170 43 11,0 4 34300 0.59 6134184 M4D032Z04A32LN11L200 32 32 200 49 11,0 4 29200 1.14 6134186 M4D032Z05A32LN11L110 32 32 110 49 11,0 5 29200 0.61 6136792 M4D032Z05A32LN11L200 32 32 200 49 11,0 5 29200 1.17 6136794 M4D040Z05A32LN11L200 40 32 200 49 11,0 5 25400 1.22 B31 kennametal.com
