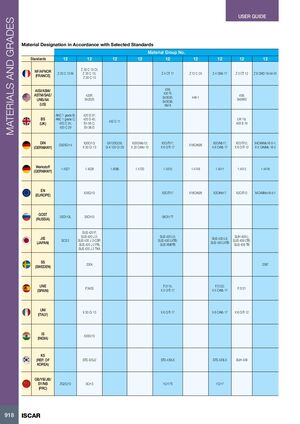

РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И МАРКИ
Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материалов | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| NF/AFNOR (ФРАНЦИЯ) |
Z 20 C 13 M | Z 33 C 13 Cl; Z 33 C 13; Z 30 C 13 | X 89 CrMoV 18-1 | Z 8 C 12; Z 10 C 13; Z 13 C 13 | Z 4 CT 17 | Z 12 C 25 | Z 4 CNb 17 | Z 3 CT 12; Z 6 CND 16-04-01 | |
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
420F; S42020 | 446; S44600 | 429; S42900 | 440B; S44003 | 410; 410S; 403; S41008; S40300; ASTM A182 Fa | 439; 430 Ti; S43035; S43036; XM 8 | 446-1 | 409; S40900 | |
| BS (ВЕЛИКОБРИТАНИЯ) |
ANC 1 grade B; ANC 1 grade C; 420 C 24; 420 C 29 | 420 S 37; 420 S 45; En 56 C; En 56 D | 452 C 11 | 410 S 21; ANC 1 grade A; En 56 A | LW 19; 409 S 19 | ||||
| DIN (ГЕРМАНИЯ) |
X30Cr13; GX20Cr14; X 30 Cr 13 | X30Cr13 | X10CrAlSi25; X10CrAl24; X 10 CrAl 24 | X7Cr14; G-X 7 Cr 13 | X90CrMoV18; GX120Cr29; G-X 120 Cr 29 | X20CrMo13; X 20 CrMo 13 | X3CrTi17; X6CrTi17; X 6 CrTi 17 | X3CrNb17; X6CrNb17; X 6 CrNb 17; X18CrN28 | X2CrTi12; X6CrTi12; X 6 CrTi 12; X4CrNiMo16-5-1; X 4 CrNiMo 16 5 |
| Werkstoff (ГЕРМАНИЯ) |
1.4027 | 1.4028 | 1.4086 | 1.4720 | 1.4510 | 1.4749 | 1.4511 | 1.4512 | 1.4418 |
| EN (ЕВРОПА) |
X30Cr13 | X3CrTi17 | X18CrN28 | X3CrNb17 | X2CrTi12; X4CrNiMo16-5-1 | ||||
| GOST (РОССИЯ) |
20Ch13L | 30Ch13 | 08Ch17T | ||||||
| JIS (ЯПОНИЯ) |
SCS 2 | SUS 420 F; SUS 420 J 2; SUS 420 J 2-CSP; SUS 420 J 2 FB; SUS 420 J 2 TKA | SUS 430 LX; SUS 430 LXTB; SUS XM8TB | SUS 430 LX; SUS 430 LXTB | SUH 409 L; SUS 409 LTB; SUS 409 TB | ||||
| SS (ШВЕЦИЯ) |
2304 | 2387 | |||||||
| UNE (ИСПАНИЯ) |
F.3403 | F.3115; X 5 CrTi 17 | F.3122; X 5 CrNb 17 | F.3121 | |||||
| UNI (ИТАЛИЯ) |
X 30 Cr 13 | X 6 CrTi 17 | X 6 CrNb 17 | X 6 CrTi 12 | |||||
| IS (ИНДИЯ) |
X30Cr13 | ||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) |
STS 420J2 | STS 430LX | STS 430LX | SUH 409 | |||||
| GB/YB/JB/SY/NB (КНР) |
ZG2Cr13 | 3Cr13 | 1Cr17Ti | 1Cr17 | |||||
