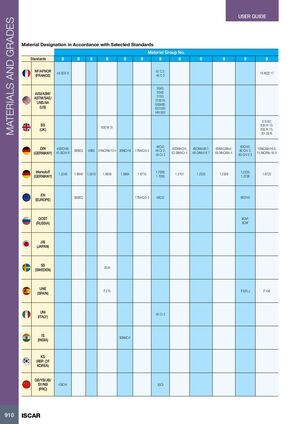

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материалов 8 | Номер группы материалов 9 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | 42 C 2; 45 C 2 | 16 NCD 17 | ||||||||||
| AISI/ASM/ ASTM/SAE/ UNS/AA (США) | 5045; 5046; 5150; 5150 H; G50460; G51500; H51500 | |||||||||||
| BS (ВЕЛИКОБРИТАНИЯ) | 830 M 31 | 5 S.82; 835 H 15; 835 N 15; En 39 B | ||||||||||
| DIN (ГЕРМАНИЯ) | 45SiCrV6; 45 SiCrV 6 | S890Q | 45B2 | 31NiCrMo13-4 | 35NiCr18 | 17MnCr5-3 | 46Cr2; 45 Cr 2; 46 Cr 2; 45 Cr 2 | 62SiMnCr4; 62 SiMnCr 4 | 48CrMoV6-7; 48 CrMoV 6 7 | 65MnCrMo4 | 80CrV2; 80 CrV 2; 80 CrV 2 3 | 15NiCrMo16-5; 15 NiCrMo 16 5 |
| Werkstoff (ГЕРМАНИЯ) | 1.2249 | 1.8940 | 1.5513 | 1.6659 | 1.5864 | 1.8715 | 1.7006; 1.7005 | 1.2101 | 1.2323; 1.2236; 1.2309 | 1.6723 | ||
| EN (ЕВРОПА) | S890Q | 17MnCr5-3 | 46Cr2 | 80CrV2 | ||||||||
| GOST (РОССИЯ) | 8ChF; 9ChF | |||||||||||
| JIS (ЯПОНИЯ) | ||||||||||||
| SS (ШВЕЦИЯ) | 2534 | |||||||||||
| UNE (ИСПАНИЯ) | F.270 | F.520.J | F.156 | |||||||||
| UNI (ИТАЛИЯ) | 45 Cr 2 | |||||||||||
| IS (ИНДИЯ) | 30Ni4Cr1 | |||||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | ||||||||||||
| GB/YB/JB/SY/NB (КНР) | 4SiCrV | 50Cr | ||||||||||
