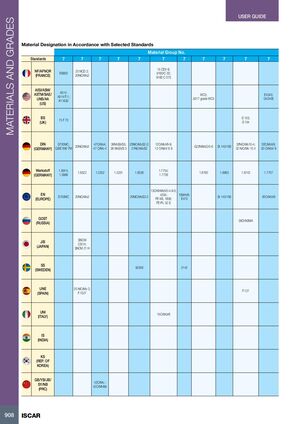

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материалов 7 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | E690D | 20 NCD 2; 20NiCrMo2 | 15 CDV 6; 9160/C 33; 9160 C 073 | ||||||||
| AISI/ASM/ ASTM/SAE/ UNS/AA (США) | A514; A514/T-1; K11630 | WC5; A217 grade WC5 | E4340; G43406 | ||||||||
| BS (ВЕЛИКОБРИТАНИЯ) | 75 F 70 | S 153; S 154 | |||||||||
| DIN (ГЕРМАНИЯ) | S700MC; QStE 690 TM | 20NiCrMo2 | 47CrMo4; 47 CrMo 4 | 38MnSiVS5; 38 MnSiVS 5 | 20NiCrMoS2-2; 21NiCrMoS2; 21 NiCrMoS 2 | 12CrMoV6-9; 12 CrMoV 6 9 | G22NiMoCr5-6 | St 145/160 | 32NiCrMo10-4; 32 NiCrMo 10 4 | 30CrMoV9; 30 CrMoV 9 | |
| Werkstoff (ГЕРМАНИЯ) | 1.8974; 1.0966 | 1.6522 | 1.2332 | 1.5231 | 1.6526; 1.7734; 1.7736 | 1.6760 | 1.8863 | 1.6743; 1.7707 | |||
| EN (ЕВРОПА) | S700MC | 20NiCrMo2 | 20NiCrMoS2-2 | 15CrMnMoV5-4-9-3; 4334; 19MnV6; FE-WL 1806; FE-PL 52 S; E470 | St 145/160 | 30CrMoV9 | |||||
| GOST (РОССИЯ) | 38ChN3MA | ||||||||||
| JIS (ЯПОНИЯ) | SNCM 220 H; SNCM 21 H | ||||||||||
| SS (ШВЕЦИЯ) | 92506 | 2142 | |||||||||
| UNE (ИСПАНИЯ) | 20 NiCrMo 2; F.1527 | F.127 | |||||||||
| UNI (ИТАЛИЯ) | 15CrMoV6 | ||||||||||
| IS (ИНДИЯ) | |||||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | |||||||||||
| GB/YB/JB/SY/NB (КНР) | 42CrMo; 42CrMnMo | ||||||||||
