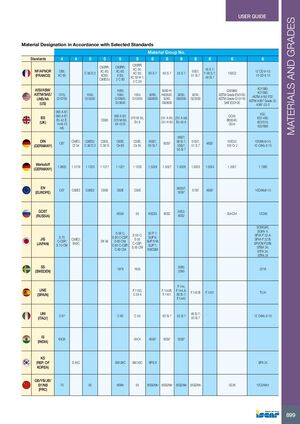

РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И МАРКИ
Обозначение материала в соответствии с выбранными стандартами
| Стандарты | Номер группы материала: 4–6 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) |
C68; XC 65 | C 56 D 2 | C90RR; XC 90; XC90; C90E2U | C60RR; XC 60; X 65; 2 C 60 | C50RR; XC 54; XC 50; XC 55 H 1; 2 C 55 | 60 S 7 | 60 S 7 | 55 S 7 | 50S7; 51 Si 7 | 45 S 7; Y 46 S 7; 46 SI 7 | 100C2; 12 CD 9-10; 10 CD 9.10 | ||
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
1070; G10700 | 1055; G10550 | 1060; 1064; G10600; G10640 | 1055; G10550 | 9260; 9260 H; H92600; G92600 | 9260; G92600 | 9255; G92550 | 9255; G22550 | ASTM Grade E50100; ASTM Grade G15116; SAE E50100 | G50986; K21390; K21590; ASTM A182 F22; ASTM A387 Grade 22; A387-22-2 | |||
| BS (ВЕЛИКОБРИТАНИЯ) |
060 A 67; 080 A 67; En 43 E; 1449 70 | CS95 | 070 M 60; En 43 D | 070 M 55; En 9 | 251 A 60; 251 H 60 | 251 A 58; En 45 A | GCr6; GCr4 | 622; 622-490; 622/515; 622/690; B00040 | |||||
| DIN (ГЕРМАНИЯ) |
C67; C56E2; Cf 54 | C 56 D 2; C 56 D 2 | C90S | C60E; Ck 60 | C55E; Ck 55 | 65Si7; 60Si7 | 56Si7; 60Si7; 55Si7 | 56 Si 7; 51Si7; 46Si7; 55Si7; 55 Si 7; 51 S 7 | 100Cr2; 100 Cr 2 | 10CrMo9-10; 10 CrMo 9 10 | |||
| Werkstoff (ГЕРМАНИЯ) |
1.0603 | 1.1219 | 1.1220 | 1.1217 | 1.1221 | 1.1203 | 1.5028 | 1.5027 | 1.5026 | 1.5025 | 1.5024 | 1.3501 | 1.7380 |
| EN (ЕВРОПА) |
C67 | C56E2 | C56D2 | C90S | C60E | C55E | 565Si7; 55Si7 | 51Si7 | 46Si7 | 10CrMo9-10 | |||
| GOST (РОССИЯ) |
60GA | 55 | 60S2G | 60S2 | 55S2; 60S2 | SchCh4 | 12Ch8 | ||||||
| JIS (ЯПОНИЯ) |
S 70; C-CSP; S 70 CM | C56E2; S55C | SK 95 | S 58 C; S 60 C-CSP; S 60 CM; C 65 C-CSP; S 55 C; S 55 CM; C 60 CM | S 55 C; S 55 C-CSP; C-CSP; S 55 CM | 50 P 7; SUP 6; SUP 6 M; SUP 7; SWOSM | SCMQ4E; SCMV 4; SFVA F 22.A; SFVA F 22.B; SFVCM F22B; STBA 24; STFA 24; STPA 24 | ||||||
| SS (ШВЕЦИЯ) |
1678 | 1655 | 2085; 2090 | 2218 | |||||||||
| UNE (ИСПАНИЯ) |
F.1150; C 55 k | F.144; F.144.B; F.144.A; F.1441; F.1440; F.145.B | F.1451; 56 Si 7 | TU.H | |||||||||
| UNI (ИТАЛИЯ) |
C 67 | C 60 | C 55 | 60 Si 7 | 55 Si 7 | 48 Si 7; 50 Si 7 | 12 CrMo 9 10 | ||||||
| IS (ИНДИЯ) |
65C6 | 55C4 | 65Si7 | 60Si7 | 55Si7 | ||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) |
S 55C | SM 58C | SM 55C | SPS 6 | SPA 24 | ||||||||
| GB/YB/JB/SY/NB (КНР) |
70 | 55 | 60Mn | 55 | 60Si2Mn | 60Si2Mn | 55Si2Mn | 55Si2Mn | GCr6 | 12Cr2Mo1 | |||
