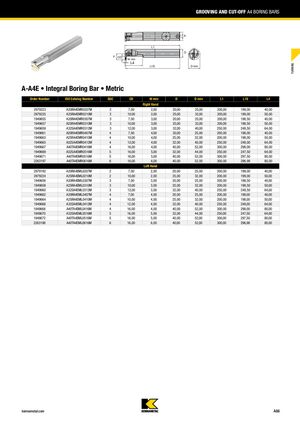

ИНСТРУМЕНТАЛЬНЫЕ РАСТОЧНЫЕ РЕЗЦЫ A4 ДЛЯ НАРЕЗАНИЯ КАНАВОК И ОТРЕЗКИ
A-A4E • Цельный расточный резец • Метрическая
| Номер заказа | Номер каталога ISO | SSC | CD | W min | D | D min | L1 | L1S | L4 |
|---|---|---|---|---|---|---|---|---|---|
| Правое вращение | |||||||||
| 2979223 | A20RA4EMR0207M | 2 | 7,00 | 2,00 | 20,00 | 25,00 | 200,00 | 199,00 | 40,00 |
| 2979225 | A25RA4EMR0210M | 2 | 10,00 | 2,00 | 25,00 | 32,00 | 200,00 | 199,00 | 50,00 |
| 1949655 | A20RA4EMR0307M | 3 | 7,00 | 3,00 | 20,00 | 25,00 | 200,00 | 198,50 | 40,00 |
| 1949657 | A25RA4EMR0310M | 3 | 10,00 | 3,00 | 25,00 | 32,00 | 200,00 | 198,50 | 50,00 |
| 1949659 | A32SA4EMR0312M | 3 | 12,00 | 3,00 | 32,00 | 40,00 | 250,00 | 248,50 | 64,00 |
| 1949661 | A20RA4EMR0407M | 4 | 7,00 | 4,00 | 20,00 | 25,00 | 200,00 | 198,00 | 40,00 |
| 1949663 | A25RA4EMR0410M | 4 | 10,00 | 4,00 | 25,00 | 32,00 | 200,00 | 198,00 | 50,00 |
| 1949665 | A32SA4EMR0412M | 4 | 12,00 | 4,00 | 32,00 | 40,00 | 250,00 | 248,00 | 64,00 |
| 1949667 | A40TA4EMR0416M | 4 | 16,00 | 4,00 | 40,00 | 52,00 | 300,00 | 298,00 | 80,00 |
| 1949669 | A32SA4EMR0516M | 5 | 16,00 | 5,00 | 32,00 | 44,00 | 250,00 | 247,50 | 64,00 |
| 1949671 | A40TA4EMR0516M | 5 | 16,00 | 5,00 | 40,00 | 52,00 | 300,00 | 297,50 | 80,00 |
| 2263197 | A40TA4EMR0616M | 6 | 16,00 | 6,00 | 40,00 | 52,00 | 300,00 | 296,98 | 80,00 |
| Левое вращение | |||||||||
| 2979192 | A20RA4EML0207M | 2 | 7,00 | 2,00 | 20,00 | 25,00 | 200,00 | 199,00 | 40,00 |
| 2979224 | A25RA4EML0210M | 2 | 10,00 | 2,00 | 25,00 | 32,00 | 200,00 | 199,00 | 50,00 |
| 1949656 | A20RA4EML0307M | 3 | 7,00 | 3,00 | 20,00 | 25,00 | 200,00 | 198,50 | 40,00 |
| 1949658 | A25RA4EML0310M | 3 | 10,00 | 3,00 | 25,00 | 32,00 | 200,00 | 198,50 | 50,00 |
| 1949660 | A32SA4EML0312M | 3 | 12,00 | 3,00 | 32,00 | 40,00 | 250,00 | 248,50 | 64,00 |
| 1949662 | A20RA4EML0407M | 4 | 7,00 | 4,00 | 20,00 | 25,00 | 200,00 | 198,00 | 40,00 |
| 1949664 | A25RA4EML0410M | 4 | 10,00 | 4,00 | 25,00 | 32,00 | 200,00 | 198,00 | 50,00 |
| 1949666 | A32SA4EML0412M | 4 | 12,00 | 4,00 | 32,00 | 40,00 | 250,00 | 248,00 | 64,00 |
| 1949668 | A40TA4EML0416M | 4 | 16,00 | 4,00 | 40,00 | 52,00 | 300,00 | 298,00 | 80,00 |
| 1949670 | A32SA4EML0516M | 5 | 16,00 | 5,00 | 32,00 | 44,00 | 250,00 | 247,50 | 64,00 |
| 1949672 | A40TA4EML0516M | 5 | 16,00 | 5,00 | 40,00 | 52,00 | 300,00 | 297,50 | 80,00 |
| 2263198 | A40TA4EML0616M | 6 | 16,00 | 6,00 | 40,00 | 52,00 | 300,00 | 296,98 | 80,00 |
