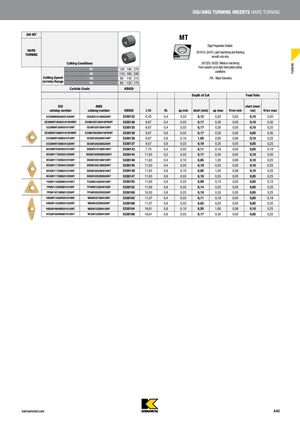

ISO/ANSI TURNING INSERTS HARD TURNING GW-MT MT Edge Preparation Details: HARD ..S01015/..S0415: Light machining and finishing, TURNING smooth cuts only Cutting Conditions ..S01225/..S0525: Medium machining: TURNING From smooth cut to light interrupted cutting H1 120 180 270 conditions H2 110 165 245 Cutting Speed H3 95 145 215 ..FW..: Wiper Geometry (m/min) Range H4 85 125 175 Carbide Grade KBH20 Depth of Cut Feed Rate ISO ANSI start (mm/ catalog number catalog number KBH20 L10 Rı ap min start (mm) ap max f/rev min rev) f/rev max CCGW060204S01225MT CCGW2151S0525MT 5330132 6,45 0,4 0,03 0,12 0,20 0,05 0,10 0,20 CCGW09T304S01015FWMT CCGW3251S0415FWMT 5330136 9,67 0,4 0,03 0,17 0,30 0,05 0,10 0,30 CCGW09T304S01015MT CCGW3251S0415MT 5330135 9,67 0,4 0,03 0,17 0,30 0,05 0,10 0,25 CCGW09T308S01015FWMT CCGW3252S0415FWMT 5330139 9,67 0,8 0,03 0,17 0,30 0,05 0,05 0,30 CCGW09T308S01015MT CCGW3252S0415MT 5330138 9,67 0,8 0,10 1,05 2,00 0,06 0,10 0,25 CCGW09T308S01225MT CCGW3252S0525MT 5330137 9,67 0,8 0,03 0,19 0,35 0,05 0,05 0,25 DCGW070204S01015MT DCGW2151S0415MT 5330143 7,75 0,4 0,03 0,11 0,18 0,05 0,05 0,18 DCGW11T302S01225MT DCGW32505S0525MT 5330144 11,63 0,2 0,03 0,17 0,30 0,05 0,10 0,20 DCGW11T304S01015MT DCGW3251S0415MT 5330146 11,63 0,4 0,10 0,65 1,20 0,06 0,10 0,25 DCGW11T304S01225MT DCGW3251S0525MT 5330145 11,63 0,4 0,03 0,19 0,35 0,05 0,10 0,25 DCGW11T308S01015MT DCGW3252S0415MT 5330148 11,63 0,8 0,10 0,65 1,20 0,06 0,10 0,25 DCGW11T308S01225MT DCGW3252S0525MT 5330147 11,63 0,8 0,03 0,19 0,35 0,05 0,05 0,25 TCGW110208S01015MT TCGW2152S0415MT 5330155 11,00 0,8 0,03 0,09 0,15 0,05 0,05 0,15 TPGW110208S01015MT TPGW2152S0415MT 5330152 11,00 0,8 0,03 0,14 0,25 0,05 0,05 0,25 TPGW16T308S01225MT TPGW3252S0525MT 5330160 16,50 0,8 0,03 0,19 0,35 0,05 0,05 0,25 VBGW110304S01015MT VBGW221S0415MT 5330163 11,07 0,4 0,03 0,11 0,18 0,05 0,05 0,18 VBGW110308S01225MT VBGW222S0525MT 5330166 11,07 0,8 0,03 0,03 0,03 0,05 0,05 0,25 VBGW160408S01015MT VBGW332S0415MT 5330164 16,61 0,8 0,10 0,55 1,00 0,06 0,10 0,25 VCGW160408S01015MT VCGW332S0415MT 5330180 16,61 0,8 0,03 0,17 0,30 0,05 0,05 0,25 kennametal.com A40
