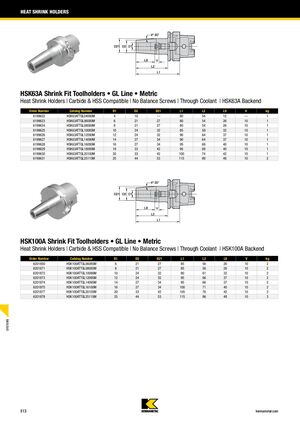

HEAT SHRINK HOLDERS HSK63A Shrink Fit Toolholders • GL Line • Metric Heat Shrink Holders | Carbide & HSS Compatible | No Balance Screws | Through Coolant | HSK63A Backend Order Number Catalog Number D1 D2 D21 L1 L2 L9 V kg 6199622 HSK63ATTGL04080M 4 10 — 80 54 12 — 1 6199623 HSK63ATTGL06080M 6 21 27 80 54 26 10 1 6199624 HSK63ATTGL08080M 8 21 27 80 54 26 10 1 6199625 HSK63ATTGL10085M 10 24 32 85 59 32 10 1 6199626 HSK63ATTGL12090M 12 24 32 90 64 37 10 1 6199627 HSK63ATTGL14090M 14 27 34 90 64 37 10 1 6199628 HSK63ATTGL16095M 16 27 34 95 69 40 10 1 6199629 HSK63ATTGL18095M 18 33 42 95 69 40 10 1 6199630 HSK63ATTGL20100M 20 33 42 100 74 42 10 1 6199631 HSK63ATTGL25115M 25 44 53 115 89 48 10 2 HSK100A Shrink Fit Toolholders • GL Line • Metric Heat Shrink Holders | Carbide & HSS Compatible | No Balance Screws | Through Coolant | HSK100A Backend Order Number Catalog Number D1 D2 D21 L1 L2 L9 V kg 6201850 HSK100ATTGL06085M 6 21 27 85 56 26 10 2 6201871 HSK100ATTGL08085M 8 21 27 85 56 26 10 2 6201872 HSK100ATTGL10090M 10 24 32 90 61 32 10 2 6201873 HSK100ATTGL12095M 12 24 32 95 66 37 10 2 6201874 HSK100ATTGL14095M 14 27 34 95 66 37 10 2 6201875 HSK100ATTGL16100M 16 27 34 100 71 40 10 2 6201877 HSK100ATTGL20105M 20 33 42 105 76 42 10 3 6201878 HSK100ATTGL25115M 25 44 53 115 86 48 10 3 SYSTEMS E13 kennametal.com
