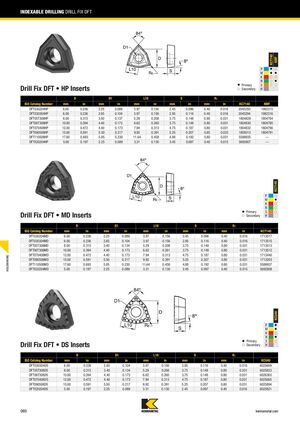

ИНДЕКСИРУЕМОЕ БУРЕНИЕ DRILL FIX DFT
Drill Fix DFT • пластины HP
| Каталожный номер ISO | D | D1 | L10 | S | R | KC7140 | KMF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | |||
| DFT030204HP | 6.00 | 0.236 | 2.25 | 0.089 | 3.97 | 0.156 | 2.45 | 0.096 | 0.40 | 0.016 | 2045293 | 1982315 |
| DFT030304HP | 6.00 | 0.236 | 2.65 | 0.104 | 3.97 | 0.156 | 2.95 | 0.116 | 0.40 | 0.016 | 2045294 | 1982316 |
| DFT05T308HP | 8.00 | 0.315 | 3.50 | 0.137 | 5.29 | 0.208 | 3.75 | 0.148 | 0.80 | 0.031 | 1804829 | 1804784 |
| DFT06T308HP | 10.00 | 0.394 | 4.40 | 0.173 | 6.62 | 0.260 | 3.75 | 0.148 | 0.80 | 0.031 | 1804830 | 1804785 |
| DFT070408HP | 12.00 | 0.472 | 4.40 | 0.173 | 7.94 | 0.313 | 4.75 | 0.187 | 0.80 | 0.031 | 1804832 | 1804790 |
| DFT090508HP | 15.00 | 0.591 | 5.50 | 0.217 | 9.92 | 0.391 | 5.25 | 0.207 | 0.85 | 0.033 | 1805013 | 1804791 |
| DFT110508HP | 17.60 | 0.693 | 5.85 | 0.230 | 11.64 | 0.458 | 4.88 | 0.192 | 0.80 | 0.031 | 5588935 | — |
| DFTX20204HP | 5.00 | 0.197 | 2.25 | 0.089 | 3.31 | 0.130 | 2.45 | 0.097 | 0.40 | 0.015 | 5692807 | — |
Drill Fix DFT • пластины MD
| Каталожный номер ISO | D | D1 | L10 | S | R | KC7140 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | ||
| DFT030204MD | 6.00 | 0.236 | 2.25 | 0.089 | 3.97 | 0.156 | 2.45 | 0.096 | 0.40 | 0.016 | 1713517 |
| DFT030304MD | 6.00 | 0.236 | 2.65 | 0.104 | 3.97 | 0.156 | 2.95 | 0.116 | 0.40 | 0.016 | 1713515 |
| DFT05T308MD | 8.00 | 0.315 | 3.40 | 0.134 | 5.29 | 0.208 | 3.75 | 0.148 | 0.80 | 0.031 | 1713513 |
| DFT06T308MD | 10.00 | 0.394 | 4.40 | 0.173 | 6.62 | 0.261 | 3.75 | 0.148 | 0.80 | 0.031 | 1713512 |
| DFT070408MD | 12.00 | 0.472 | 4.40 | 0.173 | 7.94 | 0.313 | 4.75 | 0.187 | 0.80 | 0.031 | 1713440 |
| DFT090508MD | 15.00 | 0.591 | 5.50 | 0.217 | 9.92 | 0.391 | 5.25 | 0.207 | 0.80 | 0.031 | 1713203 |
| DFT110508MD | 17.60 | 0.693 | 5.85 | 0.230 | 11.64 | 0.458 | 4.88 | 0.192 | 0.80 | 0.031 | 5588937 |
| DFTX20204MD | 5.00 | 0.197 | 2.25 | 0.089 | 3.31 | 0.130 | 2.45 | 0.097 | 0.40 | 0.015 | 5692808 |
Drill Fix DFT • пластины DS
| Каталожный номер ISO | D | D1 | L10 | S | R | KCU40 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | ||
| DFT030304DS | 6.00 | 0.236 | 2.65 | 0.104 | 3.97 | 0.156 | 2.95 | 0.116 | 0.40 | 0.016 | 6025669 |
| DFT05T308DS | 8.00 | 0.315 | 3.40 | 0.134 | 5.29 | 0.208 | 3.75 | 0.148 | 0.80 | 0.031 | 6025823 |
| DFT06T308DS | 10.00 | 0.394 | 4.40 | 0.173 | 6.62 | 0.260 | 3.75 | 0.148 | 0.80 | 0.031 | 6026363 |
| DFT070408DS | 12.00 | 0.472 | 4.40 | 0.173 | 7.94 | 0.313 | 4.75 | 0.187 | 0.80 | 0.031 | 6025665 |
| DFT090508DS | 15.00 | 0.591 | 5.50 | 0.217 | 9.92 | 0.391 | 5.25 | 0.207 | 0.80 | 0.031 | 6025894 |
| DFTX20204DS | 5.00 | 0.197 | 2.25 | 0.089 | 3.31 | 0.130 | 2.45 | 0.097 | 0.40 | 0.016 | 6025821 |
