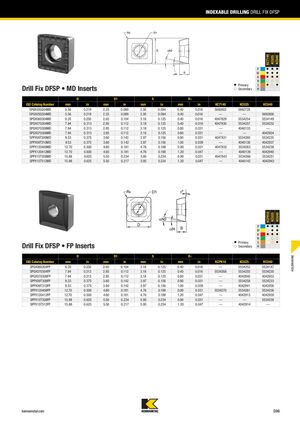

ИНДЕКСИРУЕМОЕ БУРЕНИЕ DRILL FIX DFSP
Drill Fix DFSP • пластины MD
| Каталожный номер ISO | D | D1 | S | R | KC7140 | KCU25 | KCU40 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | ||||
| SPGX050204MD | 5.56 | 0.219 | 2.25 | 0.089 | 2.38 | 0.094 | 0.40 | 0.016 | 5692802 | 5692728 | — |
| SPGX050204MD | 5.56 | 0.219 | 2.25 | 0.089 | 2.38 | 0.094 | 0.40 | 0.016 | — | — | 5692800 |
| SPGX060304MD | 6.35 | 0.250 | 2.65 | 0.104 | 3.18 | 0.125 | 0.40 | 0.016 | 4047829 | 5534254 | 5534149 |
| SPGX070304MD | 7.94 | 0.313 | 2.85 | 0.112 | 3.18 | 0.125 | 0.40 | 0.016 | 4047830 | 5534257 | 5534232 |
| SPGX070308MD | 7.94 | 0.313 | 2.85 | 0.112 | 3.18 | 0.125 | 0.80 | 0.031 | — | 4040133 | — |
| SPGX070308MD | 7.94 | 0.313 | 2.85 | 0.112 | 3.18 | 0.125 | 0.80 | 0.031 | — | — | 4042934 |
| SPPX09T308MD | 9.53 | 0.375 | 3.60 | 0.142 | 3.97 | 0.156 | 0.80 | 0.031 | 4047831 | 5534260 | 5534235 |
| SPPX09T310MD | 9.53 | 0.375 | 3.60 | 0.142 | 3.97 | 0.156 | 1.00 | 0.039 | — | 4040138 | 4042937 |
| SPPX120408MD | 12.70 | 0.500 | 4.60 | 0.181 | 4.76 | 0.188 | 0.80 | 0.031 | 4047832 | 5534263 | 5534238 |
| SPPX120412MD | 12.70 | 0.500 | 4.60 | 0.181 | 4.76 | 0.188 | 1.20 | 0.047 | — | 4040139 | 4042940 |
| SPPX15T508MD | 15.88 | 0.625 | 5.50 | 0.234 | 5.95 | 0.234 | 0.80 | 0.031 | 4047843 | 5534266 | 5534251 |
| SPPX15T512MD | 15.88 | 0.625 | 5.50 | 0.217 | 5.95 | 0.234 | 1.20 | 0.047 | — | 4040142 | 4042943 |
Drill Fix DFSP • пластины FP
| Каталожный номер ISO | D | D1 | S | R | KCPK10 | KCU25 | KCU40 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | ||||
| SPGX060304FP | 6.35 | 0.250 | 2.65 | 0.104 | 3.18 | 0.125 | 0.40 | 0.016 | — | 5534252 | 5534147 |
| SPGX070304FP | 7.94 | 0.313 | 2.85 | 0.112 | 3.18 | 0.125 | 0.40 | 0.016 | 5534268 | 5534255 | 5534230 |
| SPGX070308FP | 7.94 | 0.313 | 2.85 | 0.112 | 3.18 | 0.125 | 0.80 | 0.031 | — | 4042840 | 4042933 |
| SPPX09T308FP | 9.53 | 0.375 | 3.60 | 0.142 | 3.97 | 0.156 | 0.80 | 0.031 | — | 5534258 | 5534233 |
| SPPX09T310FP | 9.53 | 0.375 | 3.60 | 0.142 | 3.97 | 0.156 | 1.00 | 0.039 | — | 4042841 | 4042936 |
| SPPX120408FP | 12.70 | 0.500 | 4.60 | 0.181 | 4.76 | 0.188 | 0.80 | 0.031 | 5534270 | 5534261 | 5534236 |
| SPPX120412FP | 12.70 | 0.500 | 4.60 | 0.181 | 4.76 | 0.188 | 1.20 | 0.047 | — | 4042913 | 4042939 |
| SPPX15T508FP | 15.88 | 0.625 | 5.50 | 0.234 | 5.95 | 0.234 | 0.80 | 0.031 | — | — | 5534239 |
| SPPX15T512FP | 15.88 | 0.625 | 5.50 | 0.217 | 5.95 | 0.234 | 1.20 | 0.047 | — | 4042914 | — |
