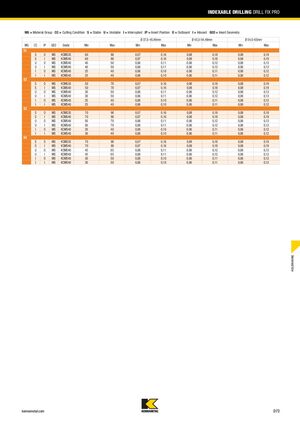

INDEXABLE DRILLING DRILL FIX PRO MG = Material Group CC = Cutting Condition S = Stable U = Unstable I = Interrupted IP = Insert Position O = Outboard I = Inboard GEO = Insert Geometry Ø 37,5–45,49mm Ø 45,5–54,49mm Ø 54,5–65mm MG CC IP GEO Grade Min Max Min Max Min Max Min Max S1 S O MS KCMS35 60 80 0,07 0,16 0,08 0,18 0,08 0,19 S I MS KCMS40 60 80 0,07 0,16 0,08 0,18 0,08 0,19 U O MS KCMS40 40 50 0,06 0,11 0,06 0,12 0,06 0,13 U I MS KCMS40 40 50 0,06 0,11 0,06 0,12 0,06 0,13 I O MS KCMS40 25 40 0,06 0,10 0,06 0,11 0,06 0,12 I I MS KCMS40 25 40 0,06 0,10 0,06 0,11 0,06 0,12 S2 S O MS KCMS35 50 70 0,07 0,16 0,08 0,18 0,08 0,19 S I MS KCMS40 50 70 0,07 0,16 0,08 0,18 0,08 0,19 U O MS KCMS40 30 50 0,06 0,11 0,06 0,12 0,06 0,13 U I MS KCMS40 30 50 0,06 0,11 0,06 0,12 0,06 0,13 I O MS KCMS40 25 40 0,06 0,10 0,06 0,11 0,06 0,12 I I MS KCMS40 25 40 0,06 0,10 0,06 0,11 0,06 0,12 S3 S O MS KCMS35 70 90 0,07 0,16 0,08 0,18 0,08 0,19 S I MS KCMS40 70 90 0,07 0,16 0,08 0,18 0,08 0,19 U O MS KCMS40 50 70 0,06 0,11 0,06 0,12 0,06 0,13 U I MS KCMS40 50 70 0,06 0,11 0,06 0,12 0,06 0,13 I O MS KCMS40 30 40 0,06 0,10 0,06 0,11 0,06 0,12 I I MS KCMS40 30 40 0,06 0,10 0,06 0,11 0,06 0,12 S4 S O MS KCMS35 70 90 0,07 0,16 0,08 0,18 0,08 0,19 S I MS KCMS40 70 90 0,07 0,16 0,08 0,18 0,08 0,19 U O MS KCMS40 45 65 0,06 0,11 0,06 0,12 0,06 0,13 U I MS KCMS40 45 65 0,06 0,11 0,06 0,12 0,06 0,13 I O MS KCMS40 30 50 0,06 0,10 0,06 0,11 0,06 0,12 I I MS KCMS40 30 50 0,06 0,10 0,06 0,11 0,06 0,12 HOLEMAKING kennametal.com D72
