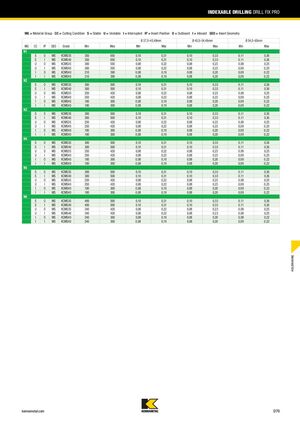

INDEXABLE DRILLING DRILL FIX PRO MG = Material Group CC = Cutting Condition S = Stable U = Unstable I = Interrupted IP = Insert Position O = Outboard I = Inboard GEO = Insert Geometry Ø 37,5–45,49mm Ø 45,5–54,49mm Ø 54,5–65mm MG CC IP GEO Grade Min Max Min Max Min Max Min Max N1 S O MS KCMS35 350 650 0,10 0,31 0,10 0,33 0,11 0,36 S I MS KCMS40 350 650 0,10 0,31 0,10 0,33 0,11 0,36 U O MS KCMS35 300 550 0,08 0,22 0,08 0,23 0,09 0,25 U I MS KCMS40 300 550 0,08 0,22 0,08 0,23 0,09 0,25 I O MS KCMS40 210 390 0,08 0,19 0,08 0,20 0,09 0,22 I I MS KCMS40 210 390 0,08 0,19 0,08 0,20 0,09 0,22 N2 S O MS KCMS35 300 500 0,10 0,31 0,10 0,33 0,11 0,36 S I MS KCMS40 300 500 0,10 0,31 0,10 0,33 0,11 0,36 U O MS KCMS35 250 420 0,08 0,22 0,08 0,23 0,09 0,25 U I MS KCMS40 250 420 0,08 0,22 0,08 0,23 0,09 0,25 I O MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 I I MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 N3 S O MS KCMS35 300 500 0,10 0,31 0,10 0,33 0,11 0,36 S I MS KCMS40 300 500 0,10 0,31 0,10 0,33 0,11 0,36 U O MS KCMS35 250 420 0,08 0,22 0,08 0,23 0,09 0,25 U I MS KCMS40 250 420 0,08 0,22 0,08 0,23 0,09 0,25 I O MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 I I MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 N4 S O MS KCMS35 300 500 0,10 0,31 0,10 0,33 0,11 0,36 S I MS KCMS40 300 500 0,10 0,31 0,10 0,33 0,11 0,36 U O MS KCMS35 250 420 0,08 0,22 0,08 0,23 0,09 0,25 U I MS KCMS40 250 420 0,08 0,22 0,08 0,23 0,09 0,25 I O MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 I I MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 N5 S O MS KCMS35 300 500 0,10 0,31 0,10 0,33 0,11 0,36 S I MS KCMS40 300 500 0,10 0,31 0,10 0,33 0,11 0,36 U O MS KCMS35 250 420 0,08 0,22 0,08 0,23 0,09 0,25 U I MS KCMS40 250 420 0,08 0,22 0,08 0,23 0,09 0,25 I O MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 I I MS KCMS40 180 300 0,08 0,19 0,08 0,20 0,09 0,22 N6 S O MS KCMS35 400 500 0,10 0,31 0,10 0,33 0,11 0,36 S I MS KCMS40 400 500 0,10 0,31 0,10 0,33 0,11 0,36 U O MS KCMS35 340 420 0,08 0,22 0,08 0,23 0,09 0,25 U I MS KCMS40 340 420 0,08 0,22 0,08 0,23 0,09 0,25 I O MS KCMS40 240 300 0,08 0,19 0,08 0,20 0,09 0,22 I I MS KCMS40 240 300 0,08 0,19 0,08 0,20 0,09 0,22 HOLEMAKING kennametal.com D70
