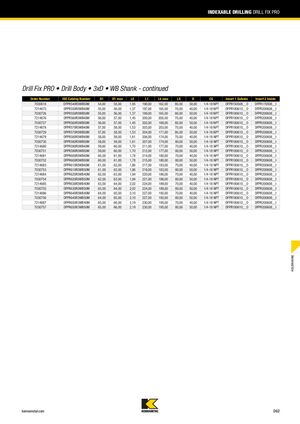

INDEXABLE DRILLING DRILL FIX PRO Drill Fix PRO • Drill Body • 3xD • WB Shank - continued Order Number ISO Catalog Number D1 D1 max L5 L1 L4 max LS D CS Insert 1 Outside Insert 2 Inside 7030618 DFPR540R3WB50M 54,00 55,00 1,85 190,00 162,00 80,00 50,00 1/4-18 NPT DFPR150508__O DFPR170508__I 7214675 DFPR550R3WB40M 55,00 56,00 1,37 197,00 165,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030726 DFPR550R3WB50M 55,00 56,00 1,37 199,00 165,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214676 DFPR560R3WB40M 56,00 57,00 1,45 200,00 200,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030727 DFPR560R3WB50M 56,00 57,00 1,45 202,00 168,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214678 DFPR570R3WB40M 57,00 58,00 1,53 203,00 203,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030729 DFPR570R3WB50M 57,00 58,00 1,53 204,00 171,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214679 DFPR580R3WB40M 58,00 59,00 1,61 206,00 174,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030730 DFPR580R3WB50M 58,00 59,00 1,61 207,00 174,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214680 DFPR590R3WB40M 59,00 60,00 1,70 211,00 177,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030751 DFPR590R3WB50M 59,00 60,00 1,70 212,00 177,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214681 DFPR600R3WB40M 60,00 61,00 1,78 214,00 180,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030752 DFPR600R3WB50M 60,00 61,00 1,78 215,00 180,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214683 DFPR610R3WB40M 61,00 62,00 1,86 217,00 183,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030753 DFPR610R3WB50M 61,00 62,00 1,86 218,00 183,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214684 DFPR620R3WB40M 62,00 63,00 1,94 220,00 186,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030754 DFPR620R3WB50M 62,00 63,00 1,94 221,00 186,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214685 DFPR630R3WB40M 63,00 64,00 2,02 224,00 189,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030755 DFPR630R3WB50M 63,00 64,00 2,02 224,00 189,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214686 DFPR640R3WB40M 64,00 65,00 2,10 227,00 192,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030756 DFPR640R3WB50M 64,00 65,00 2,10 227,00 192,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214687 DFPR650R3WB40M 65,00 66,00 2,19 230,00 195,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030757 DFPR650R3WB50M 65,00 66,00 2,19 230,00 195,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I HOLEMAKING kennametal.com D62
