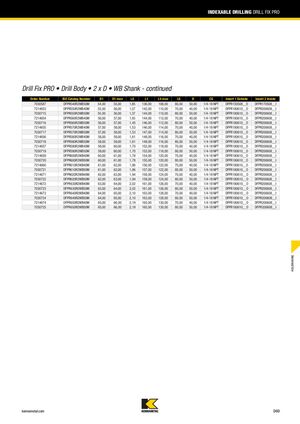

INDEXABLE DRILLING DRILL FIX PRO Drill Fix PRO • Drill Body • 2 x D • WB Shank - continued Order Number ISO Catalog Number D1 D1 max L5 L1 L4 max LS D CS Insert 1 Outside Insert 2 Inside 7030587 DFPR540R2WB50M 54,00 55,00 1,85 136,00 108,00 80,00 50,00 1/4-18 NPT DFPR150508__O DFPR170508__I 7214653 DFPR550R2WB40M 55,00 56,00 1,37 142,00 110,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030715 DFPR550R2WB50M 55,00 56,00 1,37 144,00 110,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214654 DFPR560R2WB40M 56,00 57,00 1,45 144,00 112,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030716 DFPR560R2WB50M 56,00 57,00 1,45 146,00 112,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214655 DFPR570R2WB40M 57,00 58,00 1,53 146,00 114,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030717 DFPR570R2WB50M 57,00 58,00 1,53 147,00 114,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214656 DFPR580R2WB40M 58,00 59,00 1,61 148,00 116,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030718 DFPR580R2WB50M 58,00 59,00 1,61 149,00 116,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214657 DFPR590R2WB40M 59,00 60,00 1,70 152,00 118,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030719 DFPR590R2WB50M 59,00 60,00 1,70 153,00 118,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214659 DFPR600R2WB40M 60,00 61,00 1,78 154,00 120,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030720 DFPR600R2WB50M 60,00 61,00 1,78 155,00 120,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214660 DFPR610R2WB40M 61,00 62,00 1,86 156,00 122,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030721 DFPR610R2WB50M 61,00 62,00 1,86 157,00 122,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214671 DFPR620R2WB40M 62,00 63,00 1,94 158,00 124,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030722 DFPR620R2WB50M 62,00 63,00 1,94 159,00 124,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214672 DFPR630R2WB40M 63,00 64,00 2,02 161,00 126,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030723 DFPR630R2WB50M 63,00 64,00 2,02 161,00 126,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214673 DFPR640R2WB40M 64,00 65,00 2,10 163,00 128,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030724 DFPR640R2WB50M 64,00 65,00 2,10 163,00 128,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214674 DFPR650R2WB40M 65,00 66,00 2,19 165,00 130,00 70,00 40,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030725 DFPR650R2WB50M 65,00 66,00 2,19 165,00 130,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I HOLEMAKING kennametal.com D60
